Запчасти Case IH WRX201 (88.100.02) - CENTER KICKER, HYDRAULIC LIFT KIT (Mar 12 2010 2:23PM) (88) - ACCESSORIES

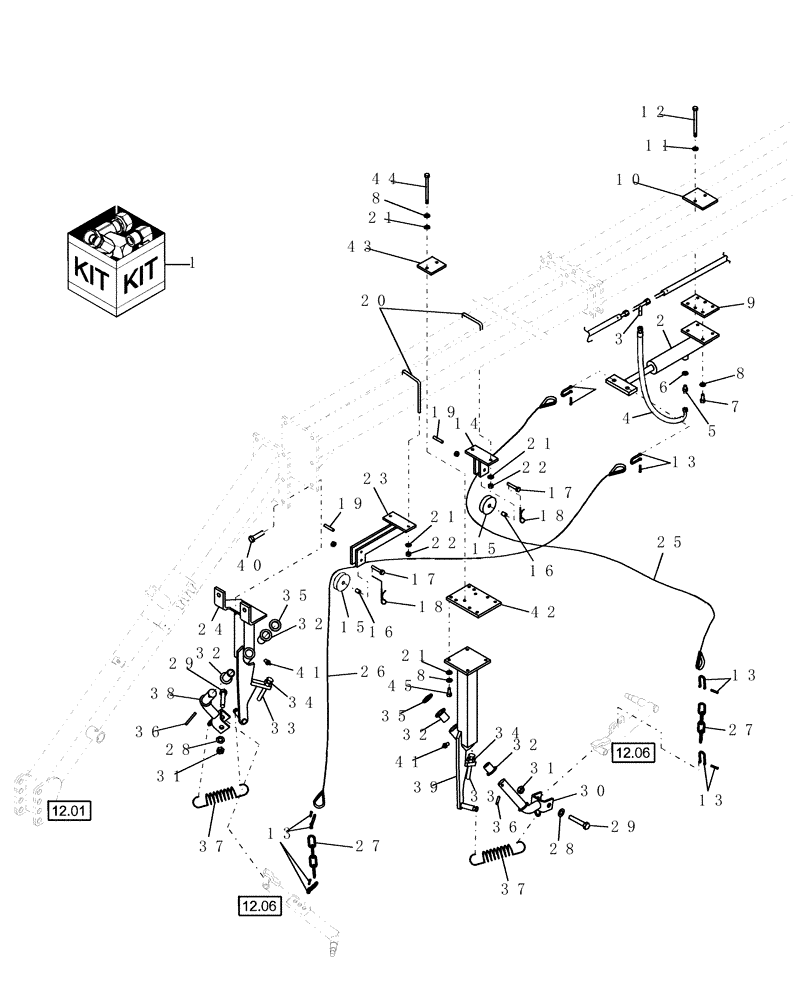

Схема запчастей Case IH WRX201 - (88.100.02) - CENTER KICKER, HYDRAULIC LIFT KIT (Mar 12 2010 2:23PM) (88) - ACCESSORIES
18
13
15
32
22
7
28
9
34
33
32
8
33
37
21
23
43
21
24
2
28
18
16
15
25
32
40
19
27
42
22
16
3
11
35
45
34
35
26
37
12
13
17
8
13
10
17
6
31
41
36
1
30
29
36
39
44
4
21
20
32
8
5
31
41
27
29
21
38
19
14
13

Артикул

Название

Примечание

Количество

1

W0

ORDER WHOLEGOODS

Center Kicker Wheel Hydraulic Lift Kit

1шт.

Also Includes All Items On Fig. 60.630.01

1шт.

2

86977397

LIFT CYLINDER,25mm Rod, 180mm Stroke

1шт.

Refer To Component Breakdown, 35.900.04

1шт.

Location Of Port May Vary 90° From Position Shown

1шт.

3

86979246

TEE

Fitting

1шт.

4

86836678

HOSE

Cylinder

1шт.

5

86979257

UNION

Nipple, 3/8"

1шт.

6

86836130

COPPER WASHER

1шт.

7

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

9

86836466

PLATE

1шт.

10

86836455

PLATE

Counter

1шт.

11

492-11062

BEARING WASHER,5/8"

2шт.

12

814-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 8.8

HH, CL 8.8, M16 x 2 x 130

2шт.

13

86836008

SHACKLE

6шт.

14

86836234

BRACKET

Pulley

1шт.

15

86836238

PULLEY

2шт.

16

86836456

BUSHING

2шт.

17

86977085

SCREW,M12 x 70mm

Drilled

2шт.

18

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

19

412660

PIN,6mm OD x 45mm L, Slotted

2шт.

20

86836237

U-BOLT

2шт.

21

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

10шт.

22

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

23

86836672

BRACKET

Pulley

1шт.

24

86836461

BRACKET

1шт.

25

86836459

CABLE

L = 39.37"

1шт.

26

86836458

CABLE

L = 68.11"

1шт.

27

86836457

CHAIN

2шт.

28

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

2шт.

29

86900356

SCREW,M18 x 100mm, Cl 8.8

Cap, HH, CL 8.8, M18 x 100

2шт.

30

86836246

BRACKET

1шт.

31

86900355

NUT,M18 x 2.5, Cl 8

2шт.

32

86729995

BUSHING,35.4mm ID x 42.4mm OD x 42.4mm L

4шт.

33

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

34

825-1412

NUT,M12, Cl 8

2шт.

35

86641656

WASHER

2шт.

36

412689

LOCK PIN,8mm OD x 50mm L, Slotted

2шт.

37

86836248

SPRING

2шт.

38

86836256

BRACKET

1шт.

39

86836463

BRACKET

1шт.

40

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

2шт.

41

84814929

LUBE NIPPLE

M6 x 1 x 45°

1шт.

42

87041641

PLATE

1шт.

43

87041639

PLATE

1шт.

44

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

2шт.

45

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 48
