(35.900.05) - HYDRAULIC SINGLE SIDE OPENING KIT

Запчасти Case IH WRX201 (35.900.05) - HYDRAULIC SINGLE SIDE OPENING KIT (35) - HYDRAULIC SYSTEMS

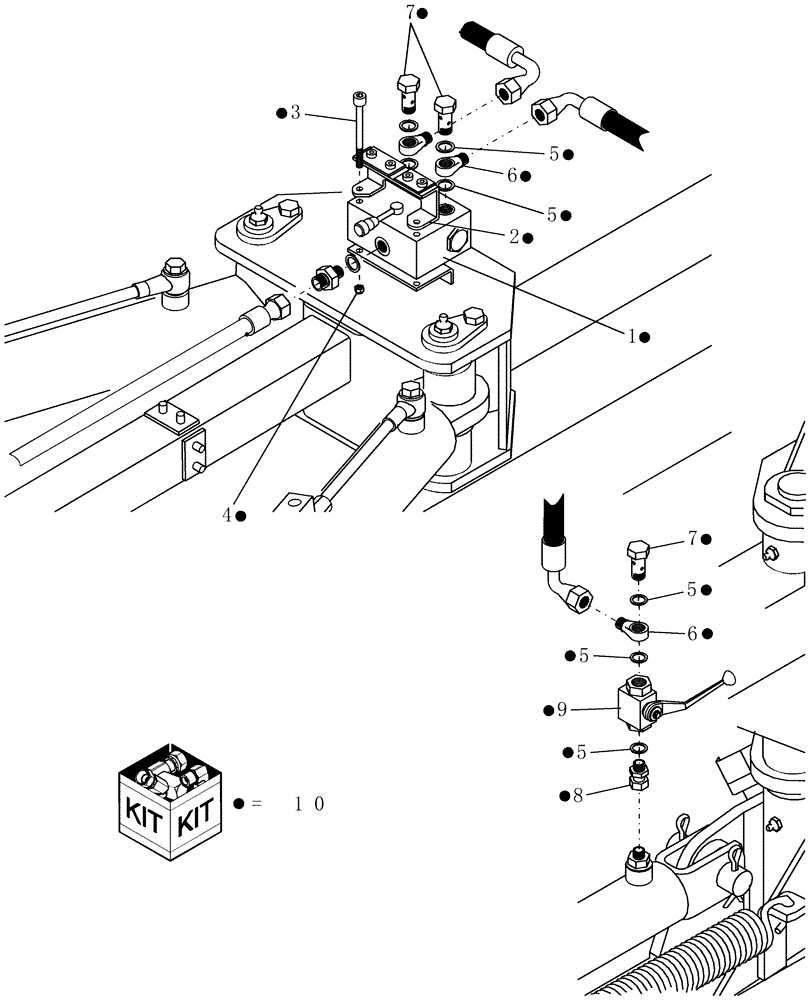

Схема запчастей Case IH WRX201 - (35.900.05) - HYDRAULIC SINGLE SIDE OPENING KIT (35) - HYDRAULIC SYSTEMS
5
5
6
6
5
2
4
5
7
3
9
1
5
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86900881

HYDRAULIC VALVE

1шт.

2

86900884

PLATE

1шт.

3

86900702

BOLT

Cap, HH, CL 8.8, M6 x 1 x 90

2шт.

4

832-46406

NUT,M6 x 1, Cl 8

2шт.

5

86836130

COPPER WASHER

3/8"

10шт.

6

86900390

FITTING

3/8"

4шт.

7

86836131

FITTING

3/8"

4шт.

8

86900391

FITTING

3/8"

2шт.

9

86900389

HYDRAULIC VALVE

2шт.

10

716932026

DIA KIT, ADD PROD

Single Side Opening, Includes: Ref. 1 - 9 & 11

1шт.

11

86979257

UNION

2шт.
