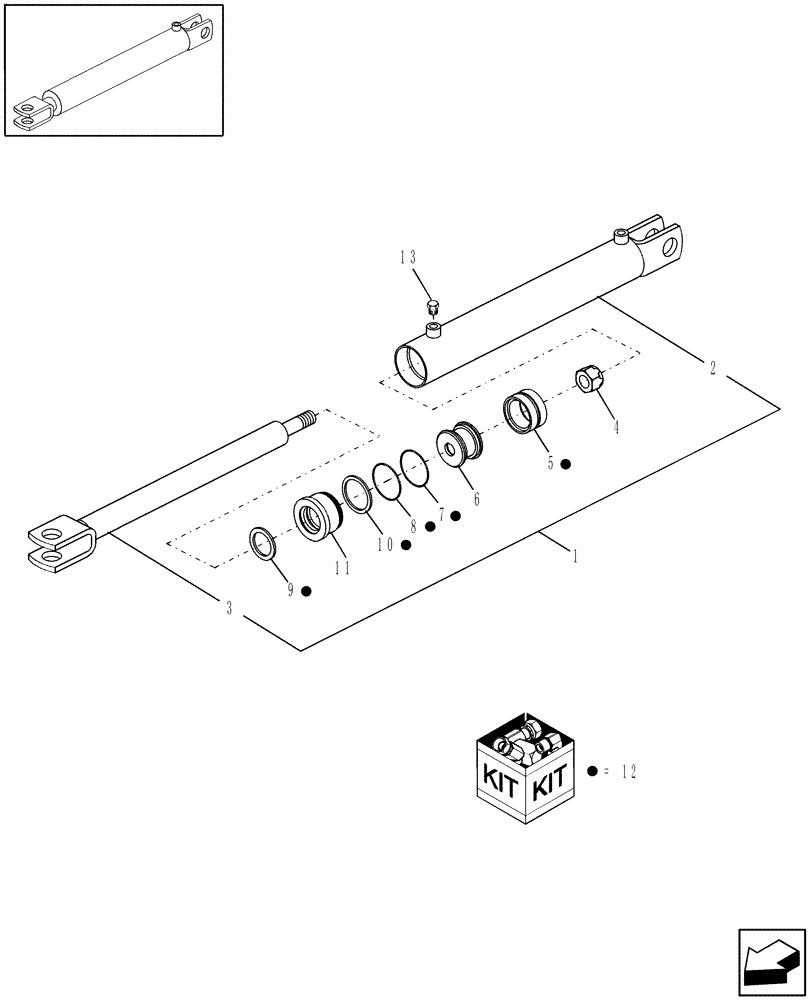

Запчасти Case IH WRX201 (35.900.03[01]) - LIFT CYLINDER COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87040622

CYLINDER,Double Acting, 50mm Rod, 312mm Stroke

2шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

86836150

PISTON ROD

1шт.

4

86011044

LOCK NUT

M18 x 1.5

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

6

86836154

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Seal

1шт.

11

87040624

CYLINDER HEAD

1шт.

12

87040625

GASKET KIT

1шт.

13

87040623

BREATHER

1шт.
