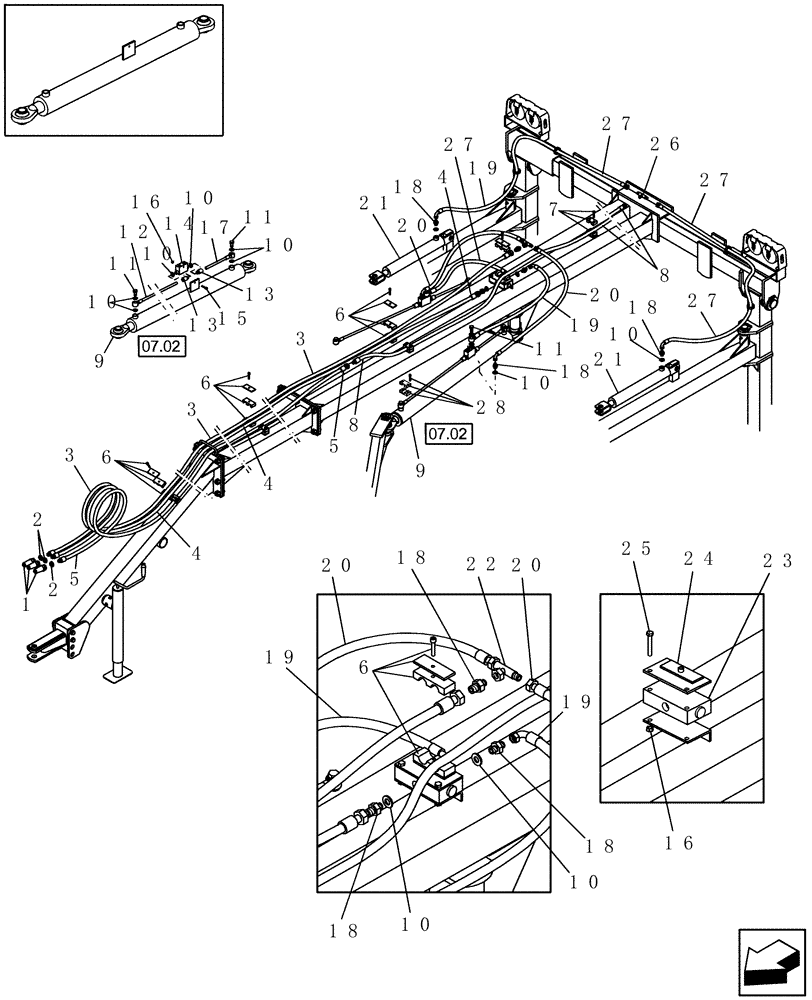

Запчасти Case IH WRX201 (35.900.01) - HYDRAULICS SYSTEM (35) - HYDRAULIC SYSTEMS

1

86979410

COUPLING

1/2"

3шт.

Prior To TY07

1шт.

1

9801618

QUICK MALE COUPLING,1/2" - 14

1/2"-14 NPSF

3шт.

From TY07

1шт.

2

86836100

COPPER WASHER

1/2"

3шт.

Prior To TY07

1шт.

3

86836421

HOSE

1шт.

Prior To TY07

1шт.

3

87564571

HOSE

Hose; F 1/2" x M 1/2"-14 NPTF

1шт.

From TY07

1шт.

4

86836422

HOSE

1шт.

Prior To TY07

1шт.

4

87564570

HOSE

Hose; F 1/2" x M 1/2"-14 NPTF

1шт.

From TY07

1шт.

5

86836423

HOSE

1шт.

Prior To TY07

1шт.

5

87564572

HOSE

Hose; F 1/2" x M 1/2"-14 NPTF

1шт.

From TY07

1шт.

6

86836424

HOSE CLAMP

Double

4шт.

7

86836110

HOSE CLAMP

4шт.

8

86836443

HOSE

1шт.

9

86836666

CYLINDER,Double Acting, 40mm Rod, 775mm Stroke

Opening, RH

1шт.

Refer To Component Breakdown

1шт.

9

86836369

CYLINDER

Opening, LH

1шт.

Refer To Component Breakdown

1шт.

10

86836130

COPPER WASHER

3/8'

23шт.

11

86836131

FITTING

3/8"

6шт.

12

86836426

TUBE,12 mm OD x 610 mm L

2шт.

13

86836139

FITTING

4шт.

14

86836142

LOCK

Valve

2шт.

15

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

2шт.

16

832-46406

NUT,M6 x 1, Cl 8

4шт.

17

86836144

TUBE,12 mm OD x 200 mm L

2шт.

18

86979257

UNION

Nipple, 3/8"

8шт.

19

86836145

HOSE,9.53mm ID x 720mm L, SAE 100R2

2шт.

20

86836146

HOSE,9.53mm ID x 750mm L, SAE 100R2

2шт.

21

87040622

CYLINDER,Double Acting, 50mm Rod, 312mm Stroke

Lift

2шт.

Refer To Component Breakdown

1шт.

22

86979247

FITTING

Swivel, T, 3/8"

1шт.

23

86836181

FLOW DIVIDER

Service with Ref. 29

1шт.

24

86836428

PLATE

1шт.

25

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

2шт.

26

86979240

FITTING

Union, Male, T, 3/8"

1шт.

27

86836149

HOSE,9.53mm ID x 750mm L, SAE 100R2

2шт.

28

86979388

HOSE CLAMP

Collar

2шт.

29

87699509

CARTRIDGE

Services Ref. 23

1шт.

Not Illustrated

1шт.
