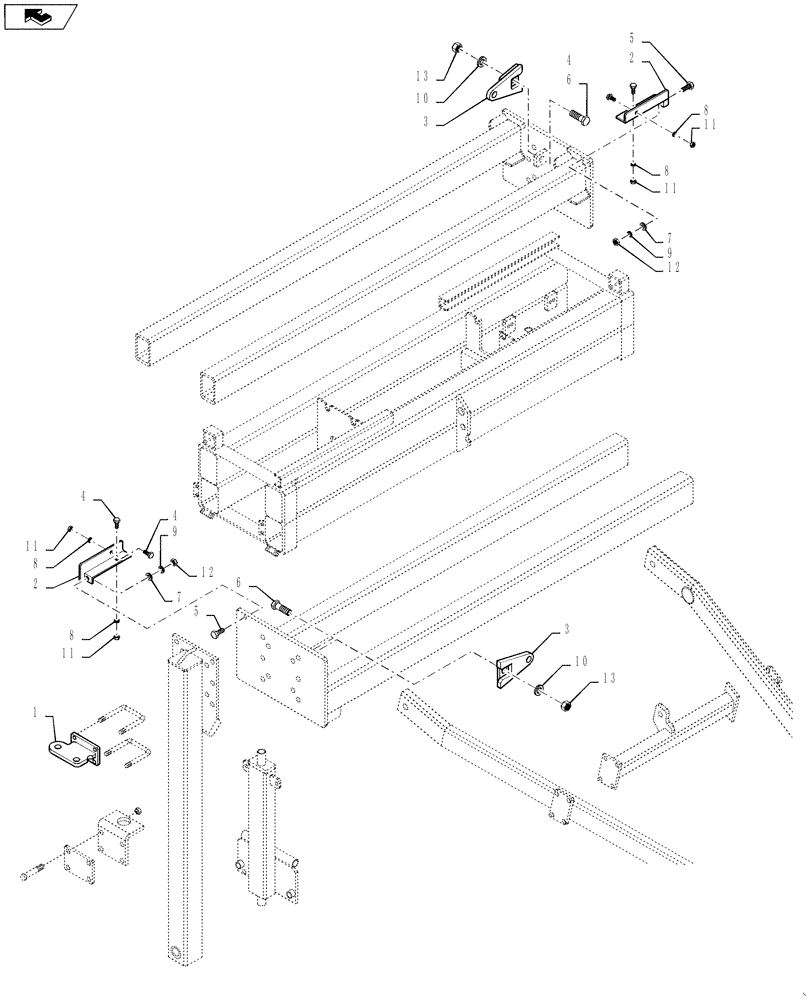

Запчасти Case IH WR401 (88.090.02[01]) - DIA KIT, REAR RAKING EXTENSION (88) - ACCESSORIES

1

84533175

MOUNT

1шт.

2

84533177

HOLDER

2шт.

3

84533178

MOUNT

2шт.

4

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

5

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

6

413-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5

2шт.

7

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

8

80682

LOCK WASHER,1/4"

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

10

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

12

280431

NUT,1/2"-13, G5

6шт.

13

9849633

NUT,1"-8, G5

2шт.
