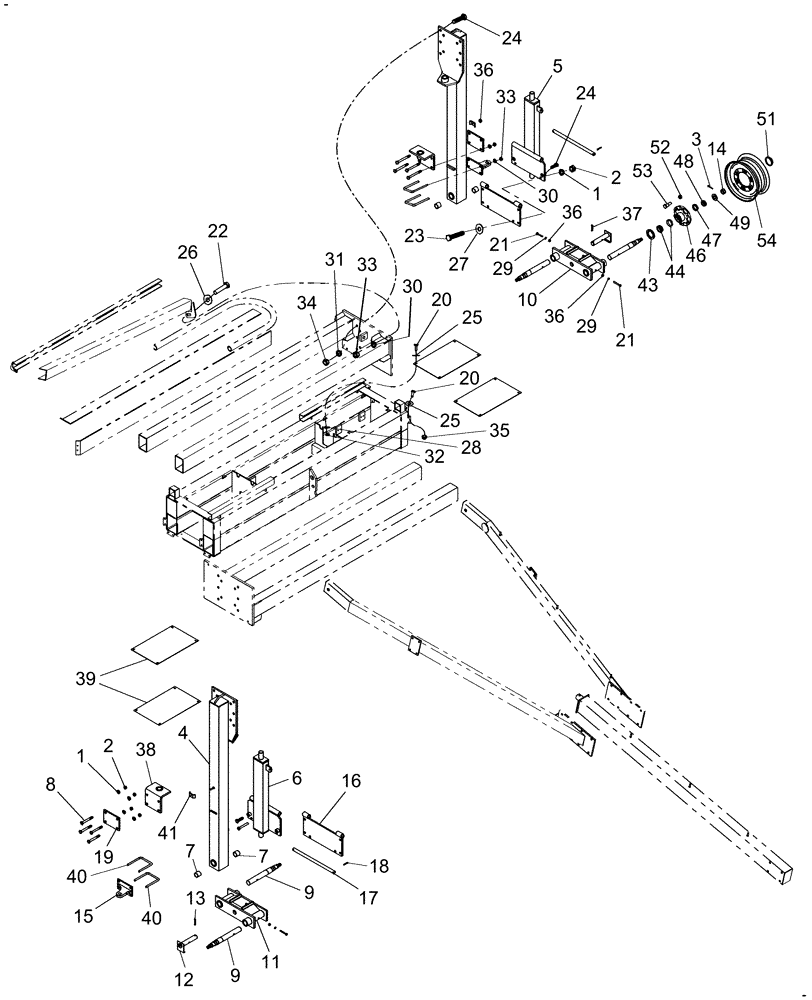

Запчасти Case IH WR401 (44.520.01) - AXLE AND WHEEL LEG (44) - WHEELS

1

86729275

LOCK WASHER,5/8 0.634 CST ZND

12шт.

2

280374

NUT,Hex, 5/8" - 11, Gr 5

12шт.

3

88350

COTTER PIN,5/32" x 1-1/2"

4шт.

4

84241519

AXLE

Upright

2шт.

5

84241520

PIVOT

Beam Left

1шт.

6

84241521

PIVOT

Beam Right

1шт.

7

84241522

BUSHING

4шт.

8

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

8шт.

9

84241524

SPINDLE

4шт.

10

84241525

AXLE

Tandem Left

1шт.

11

84241526

AXLE

Tandem Right

1шт.

12

84241527

PIN

2шт.

13

280578

PIN,9.53mm OD x 69.85mm L

2шт.

14

280172

SLOTTED NUT,7/8"-14

4шт.

15

84241625

MOUNT

2шт.

16

84241541

PLATE

Cylinder Upright End

2шт.

17

84241542

PIN

Hinge

2шт.

18

87681

LOCK PIN,7.94mm OD x 44.45mm L

4шт.

19

84241547

PLATE

2шт.

20

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

48шт.

21

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

4шт.

22

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.

23

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

4шт.

24

113-793

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5, Full Thd

24шт.

25

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

32шт.

26

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

27

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

28

80682

LOCK WASHER,1/4"

16шт.

29

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

31

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

20шт.

32

7770

NUT,Hex, 1/4 - 20, Cl 5

16шт.

33

280431

NUT,1/2"-13, G5

10шт.

34

280954

NUT,3/4"-10, G5

20шт.

35

280129

NUT,1/4"-20

32шт.

36

88902

NUT,3/8"-16

6шт.

37

38-12444

LOCK PIN,3/8" x 2 3/4", Slotted

2шт.

38

84241523

PIVOT

2шт.

39

84241533

PROTECTION PLATE

4шт.

40

84241539

U-BOLT

4шт.

41

84230756

HOLDER

2шт.

43

T57618

SEAL,41.27mm ID x 65.18mm OD x 11.13mm Thk

4шт.

44

61803C91

TAPERED BEARING,37.99mm ID x 63mm OD x 17mm W

4шт.

46

84233585

HUB

4шт.

47

36723

BEARING CUP,59.16mm OD x 11.81mm W

4шт.

48

36726

BEARING CONE,31.75mm ID x 16.76mm W

4шт.

49

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

4шт.

51

28477700

HUB CAP

4шт.

52

453770R1

WHEEL NUT

1/2" Wheel Hub

24шт.

53

E16592

WHEEL BOLT

24шт.

54

A57879

RIM

8 x 15, 6 bolt

4шт.
