(90.108.AC) - DECAL, CAUTION, MODEL IDENTIFICATION

Запчасти Case IH WR302 (90.108.AC) - DECAL, CAUTION, MODEL IDENTIFICATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

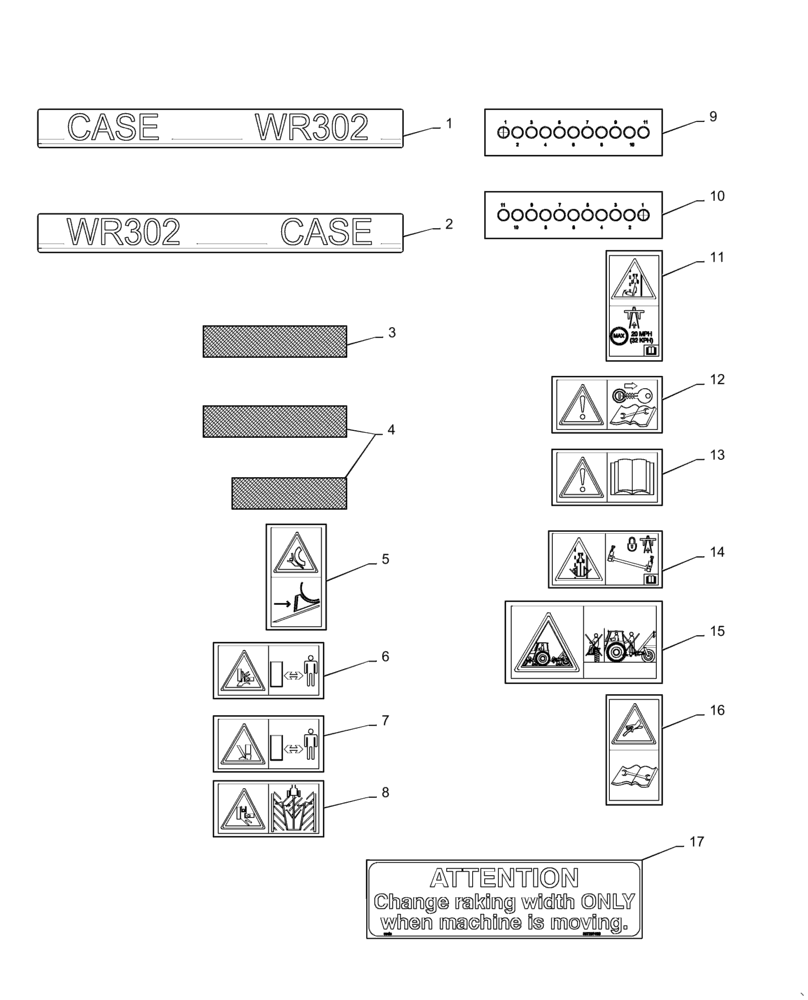

Схема запчастей Case IH WR302 - (90.108.AC) - DECAL, CAUTION, MODEL IDENTIFICATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
15
14
16
13
3
9
4
2
11
7
8
5
17
6
12
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47690282

DECAL

WR302, RH

1шт.

2

47690280

DECAL

WR302, LH

1шт.

3

86547781

REFLECTOR,RED

Tape

2шт.

4

86547782

REFLECTOR,YELLOW

Tape

6шт.

5

47748267

DECAL

Danger

2шт.

6

51400341

DECAL

Warning Sign

12шт.

7

47748268

DECAL

Danger

8шт.

8

47748270

DECAL

Danger

8шт.

9

47748271

DECAL

Cylinder Adjust, RH

1шт.

10

47748272

DECAL

Cylinder Adjust, LH

1шт.

11

47392435

DECAL

Warning, Tractor Speed Control

1шт.

12

51400333

DECAL

Warning Sign

1шт.

13

51400332

DECAL

Warning Sign

1шт.

14

47504463

DECAL

Warning, Transport Lock

2шт.

15

47748273

DECAL

Warning

2шт.

16

47748274

DECAL

Danger

2шт.

17

86729746

DECAL

Attention

1шт.
