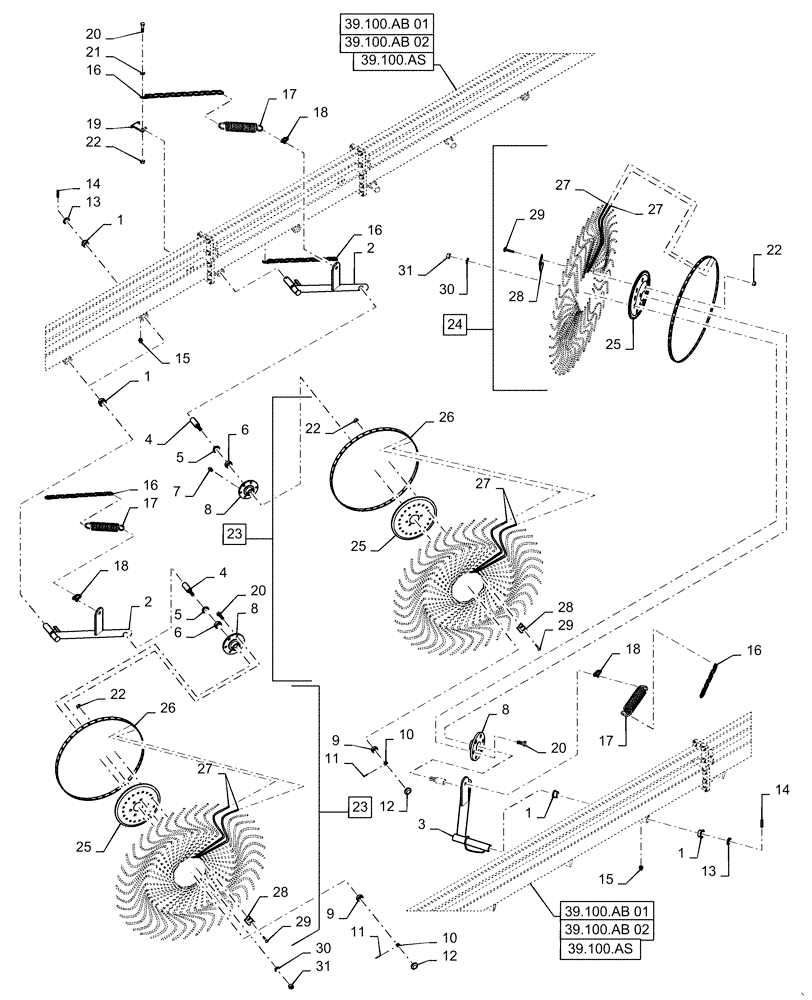

Запчасти Case IH WR302 (58.640.AA) - RAKE WHEEL & SPINDLE ASSY (58) - ATTACHMENTS/HEADERS

1

86729995

BUSHING,35.4mm ID x 42.4mm OD x 42.4mm L

Nylon

28шт.

2

47648009

ARM

Complete, RH

7шт.

3

47648010

ARM

Complete, LH

7шт.

4

86977148

SPINDLE

Rake Wheel

14шт.

5

86837112

DUST CAP

Spindle

14шт.

6

86705858

BEARING ASSY,25mm ID x 52mm OD x 16.25mm W

Hub

14шт.

7

62161

LUBE NIPPLE,M8 x 1.25, Str

14шт.

8

87483409

HUB

Rake Wheel

14шт.

9

161713

BEARING ASSY,20mm ID x 47mm OD x 15.2mm W

Hub

14шт.

10

412103

SLOTTED NUT

Spindle

14шт.

11

130005

COTTER PIN,M3.2 x 32

14шт.

12

86837114

CAP

Hub

14шт.

13

86641656

WASHER

Plated

14шт.

14

412689

LOCK PIN,8mm OD x 50mm L, Slotted

14шт.

15

86543871

LUBE NIPPLE

45 Degree

14шт.

16

47648011

CHAIN

Support

14шт.

17

86729989

SPRING

Support Chain

14шт.

18

86836008

SHACKLE

Chain

14шт.

19

47648012

SUPPORT

Chain

14шт.

20

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

98шт.

21

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

14шт.

22

100037

LOCK NUT,M10 x 1.5, Cl 8

294шт.

23

86729952

WHEEL ASSY

Rake, RH, 55", Dark Gray

7шт.

23

47663462

RAKE

Wheel, RH, 60", Dark Gray

7шт.

23

86729951

WHEEL ASSY

Rake, RH, 55", Yellow

7шт.

23

47663460

RAKE

Wheel, RH, 60", Yellow

7шт.

24

86729950

WHEEL ASSY

Rake, LH, 55", Dark Gray

7шт.

24

47663465

RAKE

Wheel, LH, 60", Dark Gray

7шт.

24

86729949

WHEEL ASSY

Rake, LH, 55", Yellow

7шт.

24

47663464

RAKE

Wheel, LH, 60", Yellow

7шт.

25

86729956

FLANGE

Rake Wheel, 55", Dark Gray

14шт.

25

47663475

FLANGE

Rake Wheel, 60", Dark Gray

14шт.

25

86729955

FLANGE

Rake Wheel, 55", Yellow

14шт.

25

47663473

FLANGE

Rake Wheel, 60", Yellow

14шт.

26

86729954

RIM

Rake Wheel, 55", Dark Gray

14шт.

26

47663470

RIM

Rake Wheel, 60", Dark Gray

14шт.

26

86729953

RIM

Rake Wheel, 55", Yellow

14шт.

26

47663469

RIM

Rake Wheel, 60", Yellow

14шт.

27

86729948

TINE

Rake Wheel, 55", Dark Gray

560шт.

27

47663467

TINE

Rake Wheel, 60", Dark Gray

560шт.

27

86729947

TINE

Rake Wheel, 55", Yellow

560шт.

27

47663466

TINE

Rake Wheel, 60", Yellow

560шт.

28

86836228

LOCK

Tine, Dark Gray

140шт.

28

86836227

STOP LOCK

Tine, Yellow

140шт.

29

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

280шт.

30

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

84шт.

31

100016

NUT,M10 x 1.5, Cl 8

84шт.
