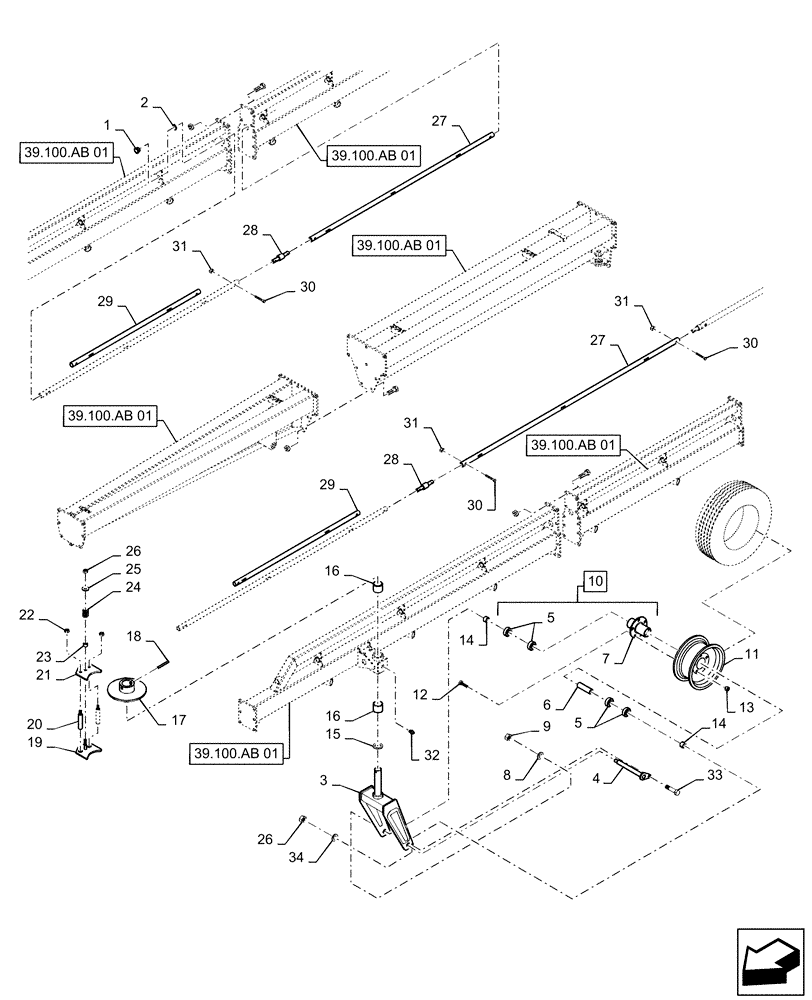

Запчасти Case IH WR302 (39.100.AB[02]) - FRAME, CENTER, ASSY (39) - FRAMES AND BALLASTING

1

47647416

BUSHING

Nylon

10шт.

2

11068976

SNAP RING,M42, Ext

10шт.

3

47647440

SUPPORT

Wheel

2шт.

4

47647443

PIN

Wheel

2шт.

5

210043

BALL BEARING,30mm ID x 62mm OD x 16mm W

8шт.

6

47647444

SPACER

Hub

2шт.

7

47647445

HUB

Wheel

2шт.

8

86836239

WASHER

Plated

2шт.

9

86729942

NUT,M22 x 2.5, Cl 8

2шт.

10

47647446

HUB

Complete, Incl 4 - 9

2шт.

11

86729958

RIM

Wheel, Silver

2шт.

11

86729957

RIM

Wheel, Yellow

2шт.

12

86900700

SPECIAL BOLT

Lug

10шт.

13

87021907

WHEEL NUT

Hub

10шт.

14

86836077

SPACER

Hub

4шт.

15

86977891

WASHER

Plated

2шт.

16

86729986

BUSHING,50.4mm ID x 60mm OD x 50mm L

Nylon

4шт.

17

86836694

BRAKE DISC

Castor Wheel

2шт.

18

440437

PIN,10mm OD x 80mm L

2шт.

19

47647486

PLATE

Brake, Lower

2шт.

20

47647492

PIN

Brake

4шт.

21

47647493

PLATE

Brake, Upper

2шт.

22

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

23

47647732

SPACER

Brake

2шт.

24

86836018

SPRING

Brake

2шт.

25

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

26

100038

NUT,M12 x 1.75, Cl 8

4шт.

27

47647752

PIPE

Arm Support

2шт.

28

47647754

PIN

Connecting

2шт.

29

47647756

PIPE

Arm Support

2шт.

30

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

6шт.

31

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

32

62161

LUBE NIPPLE,M8 x 1.25, Str

2шт.

33

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

34

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.
