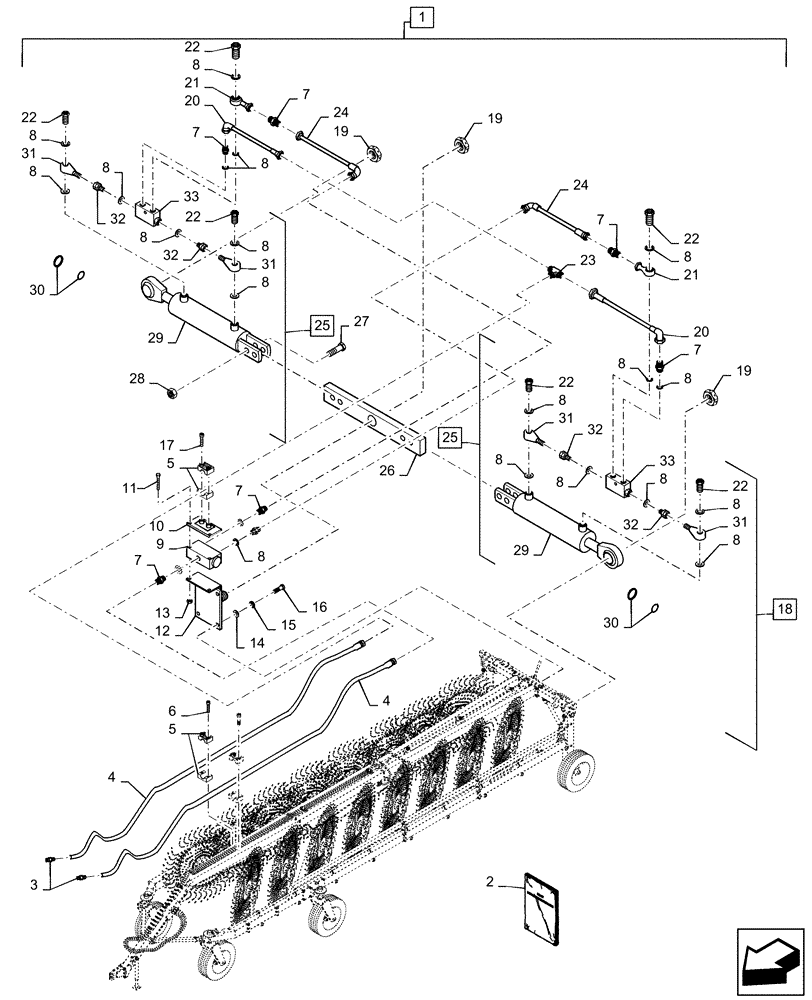

Запчасти Case IH WR302 (88.100.35[02]) - DIA KIT, HYDRAULIC REAR OPEN 12 WHEEL (88) - ACCESSORIES

1

47663081

KIT

Hydraulic Rear Open 12 Wheel, Incl 2 - 33

1шт.

Order Through Wholegoods

1шт.

2

47675000

INSTRUCTION

Hydraulic Rear Open 12 Wheel

1шт.

3

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

4

47668458

HYDRAULIC HOSE

2шт.

5

86836232

HOSE CLAMP

30шт.

6

87040653

HEX SOC SCREW,M6 x 95mm, Cl 8.8

28шт.

7

47668459

NIPPLE

7шт.

8

SIT620452

WASHER

Sealing

21шт.

9

86836180

FLOW DIVIDER

1шт.

10

86836194

SUPPORT

Hose

1шт.

11

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

12

86836218

SUPPORT

Cylinder

1шт.

13

353308

NUT,M6 x 1.0, Cl 8

2шт.

14

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

4шт.

15

80681

LOCK WASHER,5/16"

4шт.

16

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

17

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

2шт.

18

47668460

HYDRAULIC CYLINDER

Rear Assy

1шт.

19

86900392

NUT

Lock

3шт.

20

47683309

HYDRAULIC HOSE

2шт.

21

84223322

BANJO FITTING

2шт.

22

86836131

FITTING

6шт.

23

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

24

47668464

HYDRAULIC HOSE

2шт.

25

47668467

HYDRAULIC CYLINDER

2шт.

26

86979945

CONNECTING ROD

1шт.

27

120092

BOLT,M16 x 70mm, Cl 8.8

4шт.

28

86000441

NUT,M16 x 2.0, Cl 8

4шт.

29

86836195

CYLINDER,Double Acting, 30mm Rod, 207mm Stroke

2шт.

30

86836206

GASKET KIT

2шт.

31

86836197

TUBE

4шт.

32

86836139

FITTING

M12

4шт.

33

86836142

LOCK

Valve

2шт.
