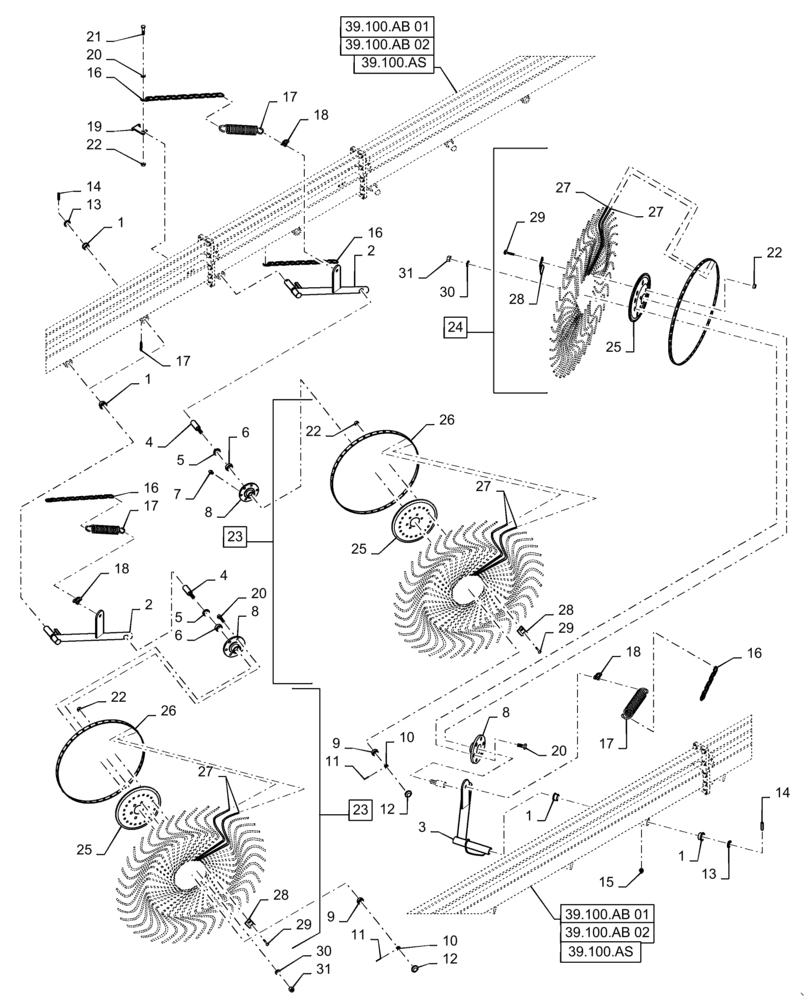

Запчасти Case IH WR302 (58.640.AA) - RAKE WHEEL & SPINDLE ASSY (58) - ATTACHMENTS/HEADERS

1

86729995

BUSHING,35.4mm ID x 42.4mm OD x 42.4mm L

Nylon

24шт.

2

47648009

ARM

RH, Complete

6шт.

3

47648010

ARM

LH, Complete

6шт.

4

86977148

SPINDLE

Hub

12шт.

5

86837112

DUST CAP

Spindle

12шт.

6

86705858

BEARING ASSY,25mm ID x 52mm OD x 16.25mm W

Tapered Roller

12шт.

7

62161

LUBE NIPPLE,M8 x 1.25, Str

12шт.

8

87483409

HUB

Rake Wheel

12шт.

9

161713

BEARING ASSY,20mm ID x 47mm OD x 15.2mm W

12шт.

10

412103

SLOTTED NUT

Hub

12шт.

11

130005

COTTER PIN,M3.2 x 32

12шт.

12

86837114

CAP

Hub

12шт.

13

86641656

WASHER

Plated

12шт.

14

412689

LOCK PIN,8mm OD x 50mm L, Slotted

12шт.

15

86543871

LUBE NIPPLE

45 Degree

12шт.

16

47648011

CHAIN

Support

12шт.

17

86729989

SPRING

Support Chain

12шт.

18

86836008

SHACKLE

Chain

12шт.

19

47648012

SUPPORT

Chain

12шт.

20

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

84шт.

21

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

12шт.

22

100037

LOCK NUT,M10 x 1.5, Cl 8

252шт.

23

86729952

WHEEL ASSY

Rake, RH, 55", Dark Gray, Incl 22, 25 - 29

6шт.

23

47663462

RAKE

Wheel, RH, 60", Dark Gray, Incl 22, 25 - 29

6шт.

23

86729951

WHEEL ASSY

Rake, RH, 55", Yellow, Incl 22, 25 - 29

6шт.

23

47663460

RAKE

Wheel, RH, 60", Yellow, Incl 22, 25 - 29

6шт.

24

86729950

WHEEL ASSY

Rake, LH, 55", Dark Gray, Incl 22, 25 - 29

6шт.

24

47663465

RAKE

Wheel, LH, 60", Dark Gray, Incl 22, 25 - 29

6шт.

24

86729949

WHEEL ASSY

Rake, LH, 55", Yellow, Incl 22, 25 - 29

6шт.

24

47663464

RAKE

Wheel, LH, 60", Yellow, Incl 22, 25 - 29

6шт.

25

86729956

FLANGE

Rake Wheel, 55", Dark Gray

12шт.

25

47663475

FLANGE

Rake Wheel, 60", Dark Gray

12шт.

25

86729955

FLANGE

Rake Wheel, 55", Yellow

12шт.

25

47663473

FLANGE

Rake Wheel, 60", Yellow

12шт.

26

86729954

RIM

Rake Wheel, 55", Dark Gray

12шт.

26

47663470

RIM

Rake Wheel, 60", Dark Gray

12шт.

26

86729953

RIM

Rake Wheel, 55", Yellow

12шт.

26

47663469

RIM

Rake Wheel, 60", Yellow

12шт.

27

86729948

TINE

Rake, 55", Dark Gray

480шт.

27

47663467

TINE

Rake, 60", Dark Gray

480шт.

27

86729947

TINE

Rake, 55", Yellow

480шт.

27

47663466

TINE

Rake, 60", Yellow

480шт.

28

86836228

LOCK

Tine, Dark Gray

120шт.

28

86836227

STOP LOCK

Tine, Yellow

120шт.

29

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

240шт.

30

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

72шт.

31

100016

NUT,M10 x 1.5, Cl 8

72шт.
