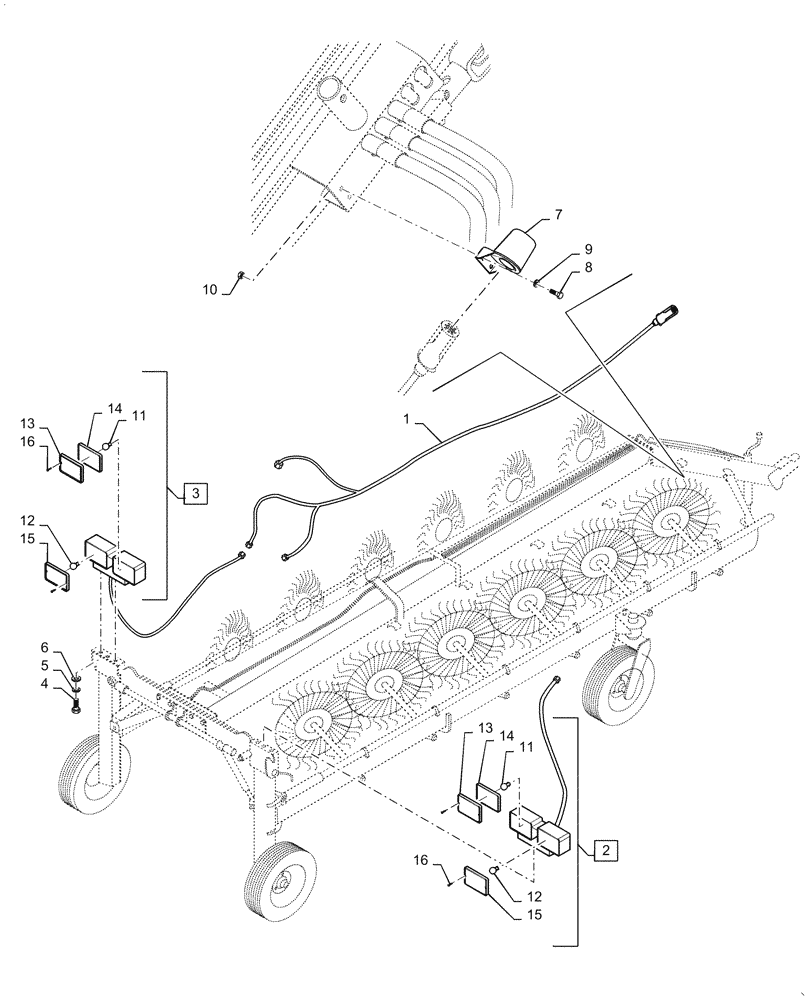

Запчасти Case IH WR302 (55.511.AJ) - HARNESS, TAIL LAMP (55) - ELECTRICAL SYSTEMS

1

47699030

WIRE HARNESS

12 Wheel

1шт.

2

86404265

LIGHT

Rear, RH, Incl 11 - 16

1шт.

3

86404264

LIGHT,12V, 21W, Amber/Red

Rear, LH, Incl 11 - 16

1шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

5

80681

LOCK WASHER,5/16"

4шт.

6

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

7

9611467

HOLDER

1шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

9

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

10

353308

NUT,M6 x 1.0, Cl 8

2шт.

11

529068

BULB,#1156, 12V, 21W

2шт.

12

86537133

BULB,C6, #1157, 12.8V

2шт.

13

86576124

LENS

Amber

2шт.

14

87308239

LENS

Red

2шт.

15

87308241

LENS

Black

2шт.

16

87563203

SCREW,Pan, #6 x 5/8"

8шт.
