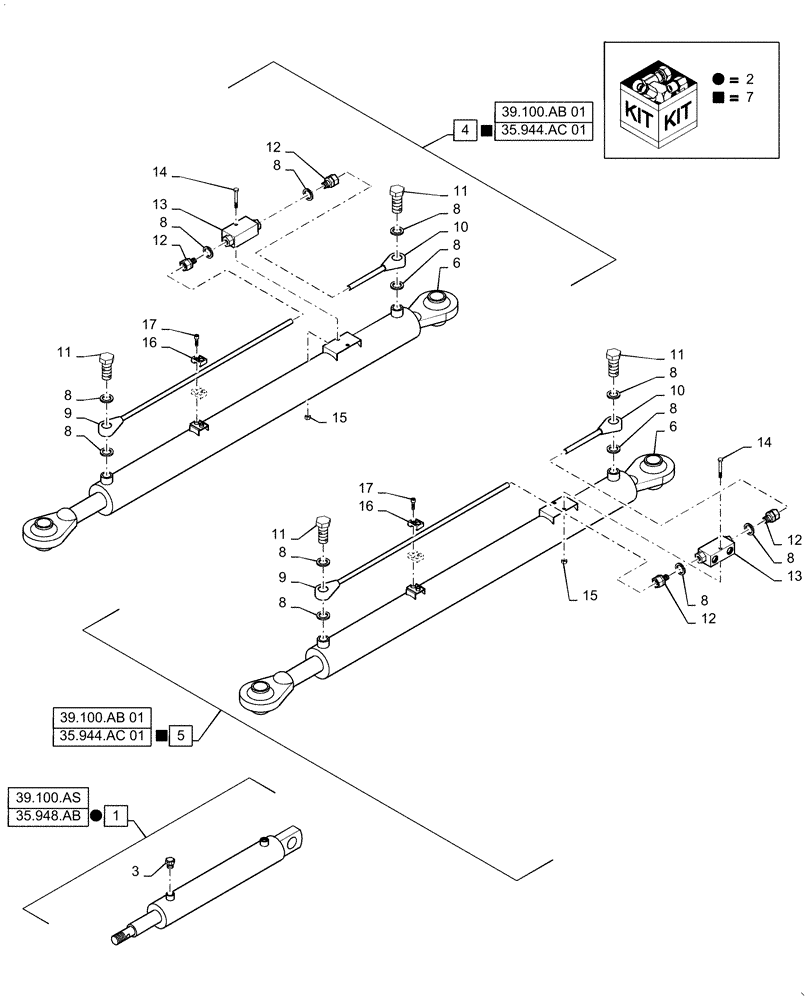

Запчасти Case IH WR302 (35.944.AC[02]) - HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

47647822

HYDRAULIC CYLINDER

Extension, Incl 2 - 3

2шт.

2

47664804

SEAL KIT

2шт.

3

87040623

BREATHER

2шт.

4

47657063

HYDRAULIC CYLINDER

Extension, RH, Incl 6 - 17

1шт.

5

47657065

HYDRAULIC CYLINDER

Extension, LH, Incl 6 - 17

1шт.

Order Components

1шт.

6

47662990

HYDRAULIC CYLINDER

Extension

2шт.

7

47664807

SEAL KIT

2шт.

8

SIT620452

WASHER

Sealing

12шт.

9

86836638

TUBE

Rod End

2шт.

10

86836143

TUBE,12 mm OD x 200 mm L

2шт.

11

86836131

FITTING

3/8"

4шт.

12

86836139

FITTING

M12

4шт.

13

86836141

LOCK VALVE

2шт.

14

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

2шт.

15

353308

NUT,M6 x 1.0, Cl 8

2шт.

16

47683293

CLAMP

Double Hose

4шт.

17

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

4шт.
