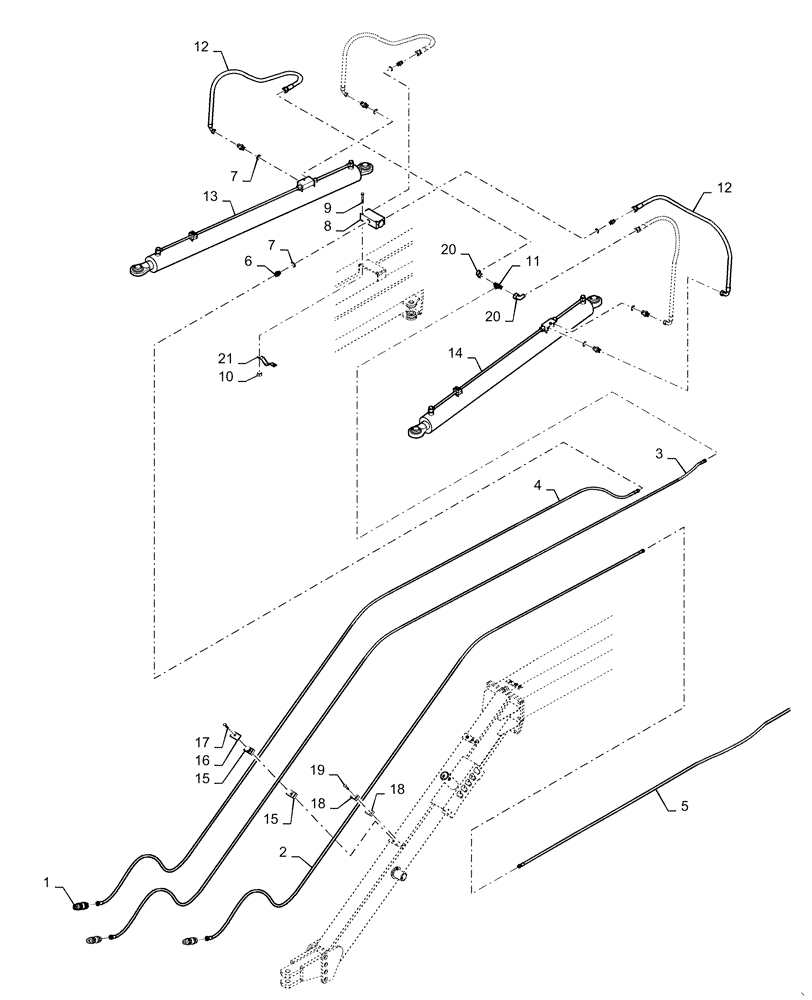

Запчасти Case IH WR302 (35.944.AC[01]) - HYDRAULIC CYLINDER, FRONT (35) - HYDRAULIC SYSTEMS

1

9801618

QUICK MALE COUPLING,1/2" - 14

3шт.

2

47683301

HYDRAULIC HOSE

1/2" 4550

1шт.

3

47683294

HYDRAULIC HOSE

1/2" 6500

1шт.

4

47683300

HYDRAULIC HOSE

1/2" 6600

1шт.

5

47683302

HYDRAULIC HOSE

3/8" 4300

1шт.

6

409409

HYD CONNECTOR

3/8"

1шт.

7

SIT620452

WASHER

Sealing

7шт.

8

86836180

FLOW DIVIDER

1шт.

9

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

10

353308

NUT,M6 x 1.0, Cl 8

2шт.

11

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

12

47683303

HYDRAULIC HOSE

3/8" 750

2шт.

13

47657063

HYDRAULIC CYLINDER

RH, W/ Valve

1шт.

14

47657065

HYDRAULIC CYLINDER

LH, W/ Valve

1шт.

15

47686193

CLAMP

Double

5шт.

16

47686191

PLATE

Upper

5шт.

17

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

5шт.

18

86836232

HOSE CLAMP

1/2"

12шт.

19

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

12шт.

20

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

21

47687870

SUPPORT

Hose

1шт.
