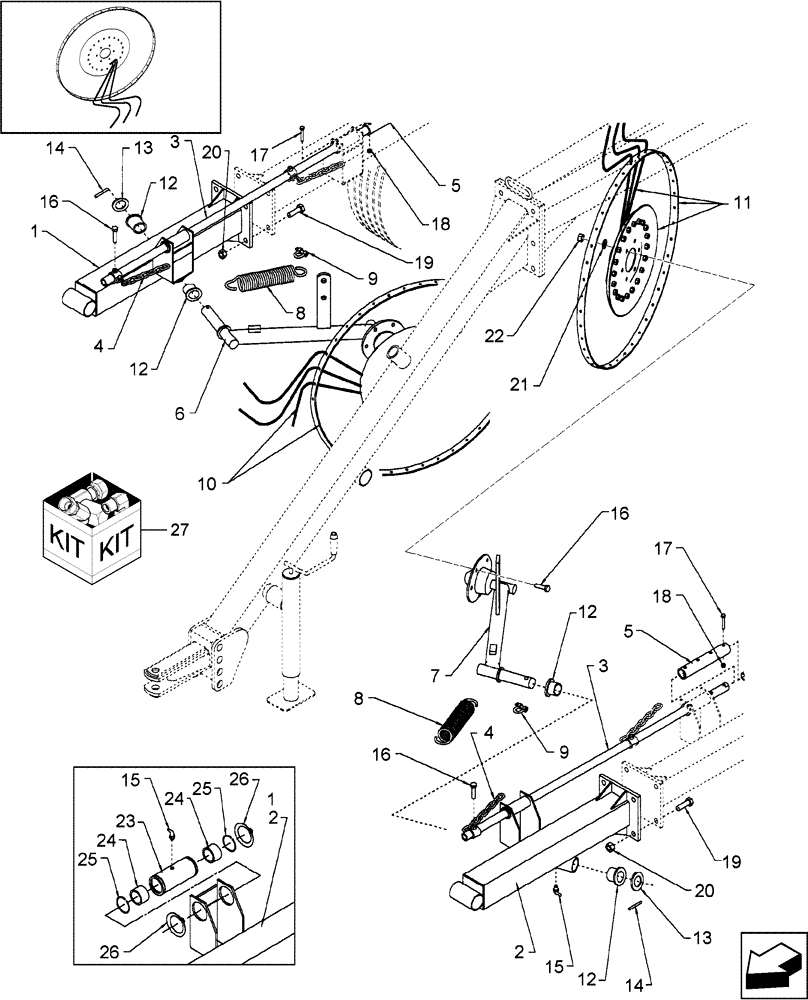

Запчасти Case IH WR201 (88.100.58[02]) - CONVERSION KITS, 8 TO 10 WHEELS (88) - ACCESSORIES

1

86836313

SECTOR

RH Wheel

1шт.

2

86836315

SECTOR

LH Wheel

1шт.

3

86836396

PIPE

Front

2шт.

4

86729988

CHAIN

Plated

2шт.

5

86729990

BUSHING

Plated

2шт.

Use Existing Parts From Unit. Not Included In Kit.

1шт.

6

86729944

ARM

RH, Raking Wheel

1шт.

DFC001360 & Prior

1шт.

6

87495622

ARM

RH, Raking Wheel

1шт.

DFC001361 & After

1шт.

7

86729985

ARM

LH, Raking Wheel

1шт.

DFC001360 & Prior

1шт.

7

87495626

ARM

LH, Raking Wheel

1шт.

DFC001361 & After

1шт.

8

86729989

SPRING

Plated

2шт.

9

86836008

SHACKLE

2шт.

10

86729952

WHEEL ASSY

RH, Finger Wheel

1шт.

11

86729950

WHEEL ASSY

LH, Finger Wheel

1шт.

12

86729995

BUSHING,35.4mm ID x 42.4mm OD x 42.4mm L

Nylon

4шт.

13

86641656

WASHER

Plated

2шт.

14

412689

LOCK PIN,8mm OD x 50mm L, Slotted

2шт.

15

84814929

LUBE NIPPLE

Fitting, M6 x 1 x 45°

4шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

14шт.

17

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

8шт.

Use Existing Parts From Unit. Not Included In Kit.

1шт.

18

832-46408

NUT,M8 x 1.25, Cl 8

8шт.

Use Existing Parts From Unit. Not Included In Kit.

1шт.

19

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

8шт.

20

832-46416

NUT,M16 x 2, Cl 8

8шт.

21

892-11010

LOCK WASHER,M10

12шт.

22

825-1410

NUT,M10, Cl 8

12шт.

23

86836281

BUSHING

CR

2шт.

24

86836226

BUSHING

Nylon

4шт.

25

86900388

SNAP RING

Retaining

4шт.

26

800-1150

SNAP RING,M50, Ext

Ext, 50

4шт.

27

716930056

DIA KIT, ADD PROD

Wheel Conversion, From 8 To 10 Wheels, Includes: 1 - 4, 6 - 16, 19 - 26

1шт.
