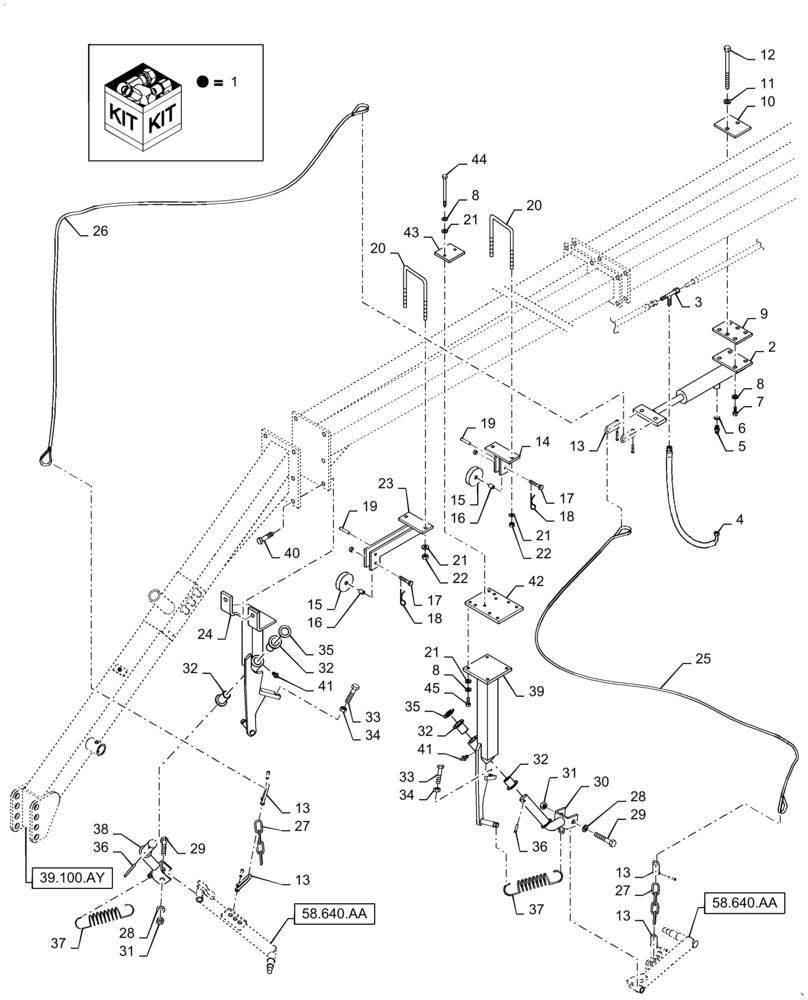

Запчасти Case IH WR201 (88.100.35[03]) - CENTER KICKER, HYDRAULIC LIFT KIT (MAR 12 2010 2:37PM) (88) - ACCESSORIES

1

716929026

DIA KIT, ADD PROD

Center Kicker Wheel Hydraulic Lift

1шт.

Also Includes All Items On Fig. 60.630.01

1шт.

2

86977397

LIFT CYLINDER,25mm Rod, 180mm Stroke

1шт.

Location Of Port May Vary 90° From Position Shown

1шт.

3

86979246

TEE

1шт.

4

86836678

HOSE

Cylinder

1шт.

5

86979257

UNION

Nipple, 3/8"

1шт.

6

86836130

COPPER WASHER

1шт.

7

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

9

86836466

PLATE

1шт.

10

86836455

PLATE

1шт.

11

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

12

354360

BOLT,Hex, M16 x 2 x 130mm, Cl 8.8

2шт.

13

86836008

SHACKLE

6шт.

14

86836234

BRACKET

Pulley

1шт.

15

86836238

PULLEY

2шт.

16

86836456

BUSHING

2шт.

17

86977085

SCREW,M12 x 70mm

Drilled

2шт.

18

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

19

412660

PIN,6mm OD x 45mm L, Slotted

2шт.

20

86836237

U-BOLT

2шт.

21

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

10шт.

22

100038

NUT,M12 x 1.75, Cl 8

4шт.

23

86836672

BRACKET

Pulley

1шт.

24

86836461

BRACKET

1шт.

25

86836459

CABLE

L = 39.37"

1шт.

26

86836458

CABLE

L = 68.11"

1шт.

27

86836457

CHAIN

2шт.

28

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

2шт.

29

86900356

SCREW,M18 x 100mm, Cl 8.8

Cap, HH, CL 8.8, M18 x 100

2шт.

30

86836246

BRACKET

1шт.

31

86900355

NUT,M18 x 2.5, Cl 8

2шт.

32

86729995

BUSHING,35.4mm ID x 42.4mm OD x 42.4mm L

4шт.

33

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

34

9706685

NUT,M12 x 1.75, Cl 8

2шт.

35

86641656

WASHER

2шт.

36

412689

LOCK PIN,8mm OD x 50mm L, Slotted

2шт.

37

86836248

SPRING

2шт.

38

86836256

BRACKET

1шт.

39

86836463

BRACKET

1шт.

40

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

2шт.

41

84814929

LUBE NIPPLE

M6 x 1 x 45°

1шт.

42

87041641

PLATE

1шт.

43

87041639

PLATE

1шт.

44

395277

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

2шт.

45

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.
