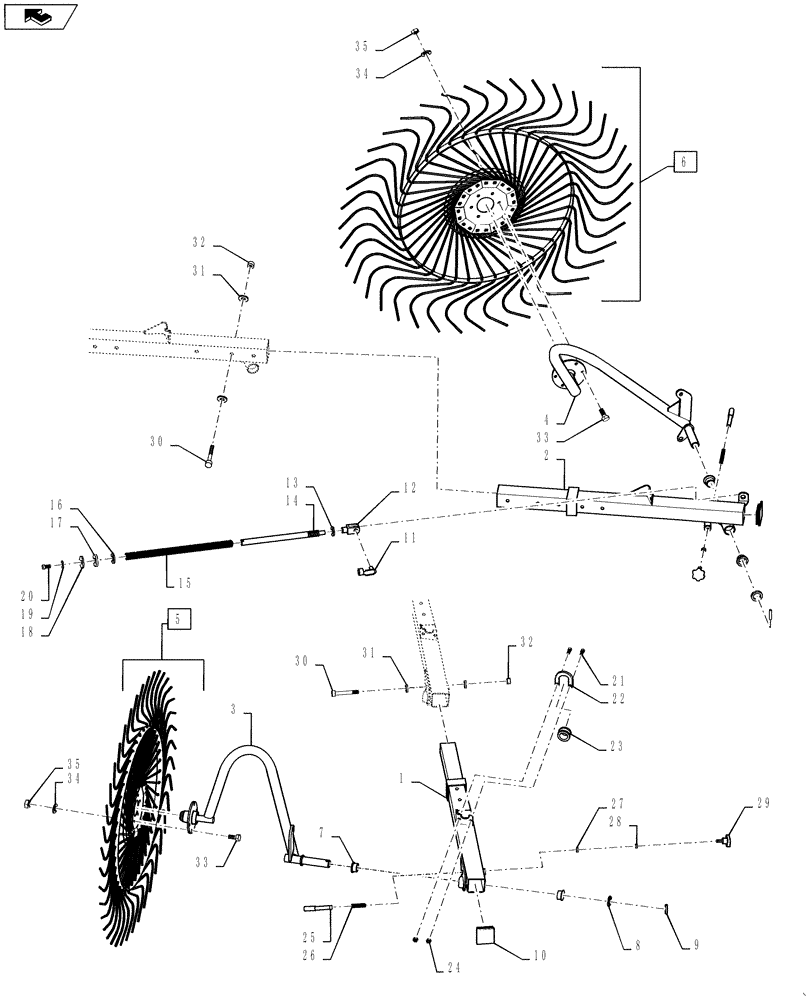

Запчасти Case IH WR102C (60.630.05) - WHEEL CONVERSION KIT, 8 TO 10 WHEEL (60) - PRODUCT FEEDING

1

84428856

EXTENSION

Right Hand, 10 Wheel Red

1шт.

2

84428857

EXTENSION

Left Hand, 10 Wheel Red

1шт.

3

84428880

ARM

Right Hand, Red

1шт.

4

84428882

ARM

Left Hand, Red

1шт.

5

86729952

WHEEL ASSY

Right Hand Finger Wheel

1шт.

6

86729950

WHEEL ASSY

Left Hand Finger Wheel

1шт.

7

86729995

BUSHING,35.4mm ID x 42.4mm OD x 42.4mm L

4шт.

8

86641656

WASHER

2шт.

9

412689

LOCK PIN,8mm OD x 50mm L, Slotted

2шт.

10

84222440

PLASTIC PLUG

2шт.

11

84473051

LOCK PIN,16mm OD x 69mm L

2шт.

12

84241854

YOKE

2шт.

13

84428884

JAM NUT

2шт.

14

84428840

ROD

2шт.

15

84428845

COMPRESSION SPRING

2шт.

16

84428843

WASHER

2шт.

17

84428844

WASHER

2шт.

18

86625245

WASHER,0.52" ID x 2" OD x 0.16" Thk

2шт.

19

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

20

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

21

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

22

84428846

SUPPORT

2шт.

23

84428842

GUIDE BUSHING

2шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

25

84428869

LOCK PIN

2шт.

26

84428872

COMPRESSION SPRING

Red

2шт.

27

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

2шт.

28

9706690

NUT,M8 x 1.25, Cl 8

2шт.

29

84473050

KNOB

2шт.

30

86562594

BOLT,Hex, M12 x 110mm, Cl 8.8

6шт.

31

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

12шт.

32

100038

NUT,M12 x 1.75, Cl 8

6шт.

33

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

12шт.

34

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

12шт.

35

100016

NUT,M10 x 1.5, Cl 8

12шт.
