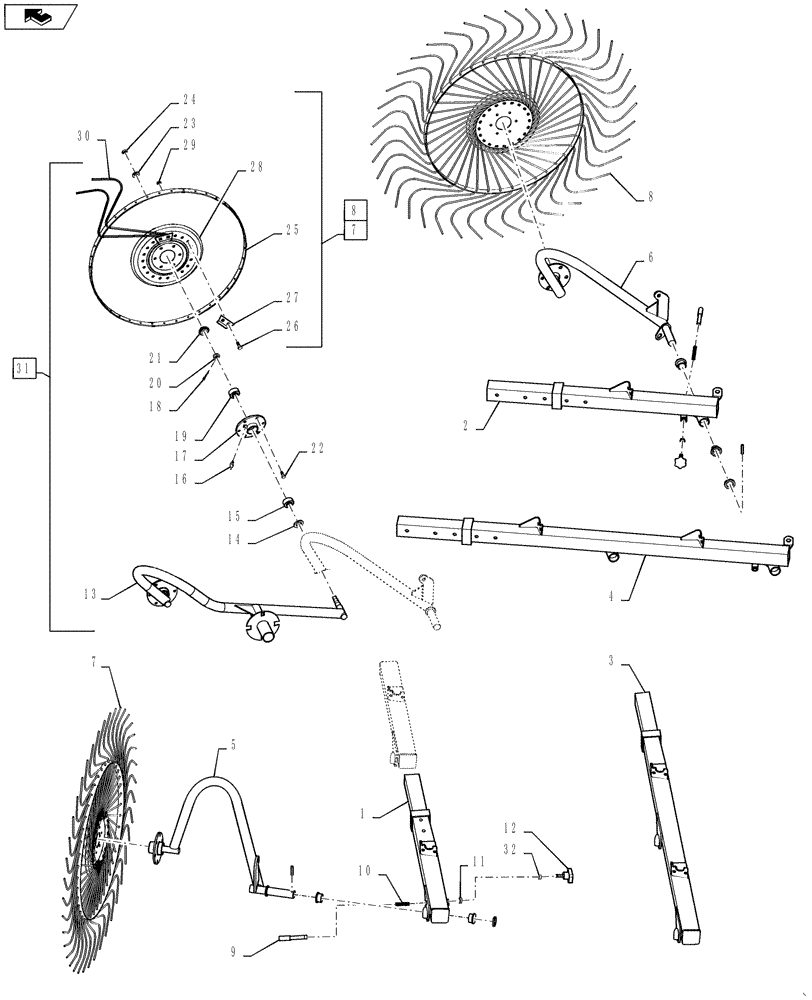

Запчасти Case IH WR102C (60.630.02) - RAKE WHEELS AND ARM ASSEMBLY (60) - PRODUCT FEEDING

1

84428856

EXTENSION

Left Hand, 10 Wheel, Red

1шт.

2

84428857

EXTENSION

Right Hand, 10 Wheel, Red

1шт.

3

84428860

EXTENSION

Right Hand, 12 Wheel, Red

1шт.

4

84428861

EXTENSION

Left Hand, 12 Wheel, Red

1шт.

5

84428880

ARM

Right Hand, 10 and 12 Wheel, Red

1шт.

6

84428882

ARM

Left Hand, 10 and 12 Wheel, Red

1шт.

7

86729952

WHEEL ASSY

6шт.

8

86729950

WHEEL ASSY

6шт.

9

84428869

LOCK PIN

Used on 10 and 12 Wheel

2шт.

10

84428872

COMPRESSION SPRING

Used on 10 and 12 Wheel, Red

2шт.

11

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

Used on 10 and 12 Wheel

2шт.

12

84473050

KNOB

Used on 10 and 12 Wheel

2шт.

13

86977148

SPINDLE

12шт.

14

86837112

DUST CAP

12шт.

15

86705858

BEARING ASSY,25mm ID x 52mm OD x 16.25mm W

12шт.

16

62161

LUBE NIPPLE,M8 x 1.25, Str

12шт.

17

87495621

HUB

12шт.

18

130005

COTTER PIN,M3.2 x 32

12шт.

19

161713

BEARING ASSY,20mm ID x 47mm OD x 15.2mm W

12шт.

20

412103

SLOTTED NUT

12шт.

21

86837114

CAP

12шт.

22

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

72шт.

23

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Helical Spring Lock 10

72шт.

24

100016

NUT,M10 x 1.5, Cl 8

72шт.

25

86729954

RIM

12шт.

26

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

240шт.

27

86836228

LOCK

120шт.

28

86729956

FLANGE

12шт.

29

100037

LOCK NUT,M10 x 1.5, Cl 8

240шт.

30

86729948

TINE

480шт.

31

NSS

NOT SOLD SEPARAT

1шт.

32

9706690

NUT,M8 x 1.25, Cl 8

Used on 10 and 12 Wheel

2шт.
