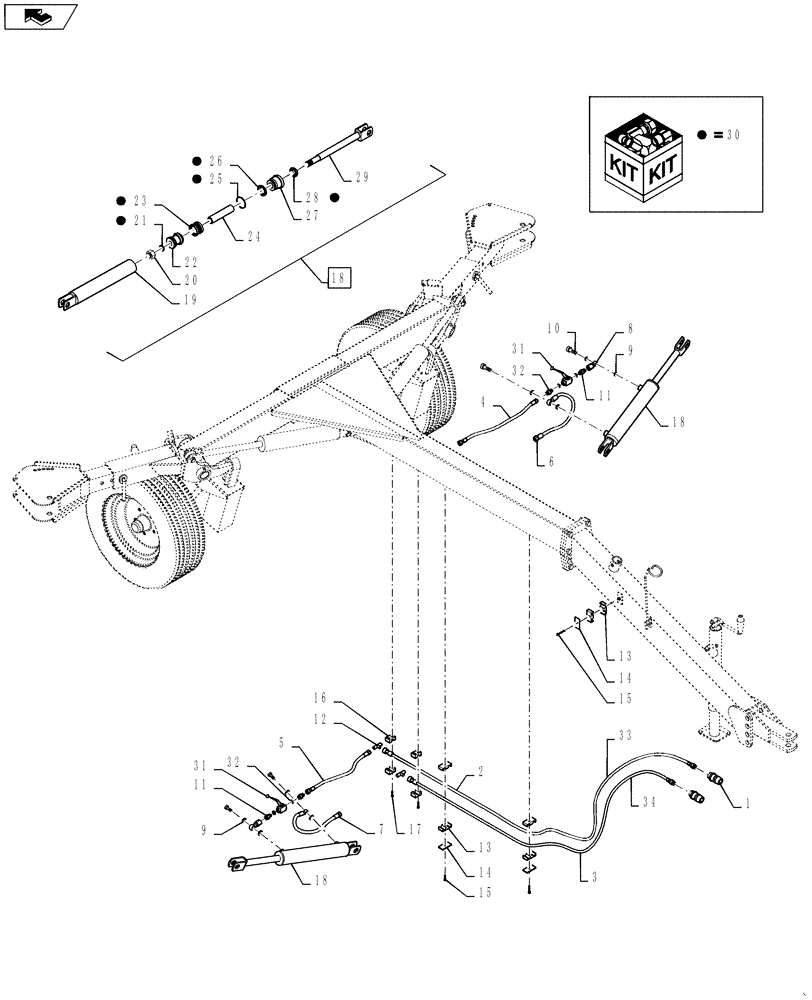

Запчасти Case IH WR102C (35.900.01[01]) - HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

2

84469335

HYDRAULIC HOSE

4300mm

1шт.

3

84469334

HYDRAULIC HOSE

4500mm

1шт.

4

84469336

HYDRAULIC HOSE

420mm

1шт.

5

84469337

HYDRAULIC HOSE

540mm

1шт.

6

84465729

HYDRAULIC HOSE

475mm

1шт.

7

84474301

HYDRAULIC HOSE

420mm

1шт.

8

84223322

BANJO FITTING

2шт.

9

SIT620452

WASHER

12шт.

10

86836131

FITTING

4шт.

11

87350240

FITTING

2шт.

12

84223315

TEE

2шт.

13

84468329

CLAMP

6шт.

14

384870A1

PLATE

3шт.

15

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

3шт.

16

86836232

HOSE CLAMP

4шт.

17

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

4шт.

18

84428873

HYDRAULIC CYLINDER,Double Acting, 30mm Rod, 233mm Stroke

2шт.

19

NSS

NOT SOLD SEPARAT

1шт.

20

12575321

NUT,M24 x 2, Cl 10

2шт.

21

NSS

NOT SOLD SEPARAT

1шт.

22

84224810

PISTON

2шт.

23

NSS

NOT SOLD SEPARAT

1шт.

24

84467795

SPACER

2шт.

25

NSS

NOT SOLD SEPARAT

1шт.

26

NSS

NOT SOLD SEPARAT

1шт.

27

84224812

CYLINDER HEAD

2шт.

28

NSS

NOT SOLD SEPARAT

1шт.

29

84467794

ROD

2шт.

30

84224813

SEAL KIT

Includes Ref. 21, 23, 25, 26, and 28, Applies To MY13 And Olderr Units

1шт.

30

47618174

SEAL KIT

Includes Ref. 21, 23, 25, 26, and 28, Applies To MY14 And Newer Units

1шт.

31

86900389

HYDRAULIC VALVE

2шт.

32

86979257

UNION

2шт.

33

84469333

HYDRAULIC HOSE

5100mm

1шт.

34

84469175

HYDRAULIC HOSE

4950mm

1шт.
