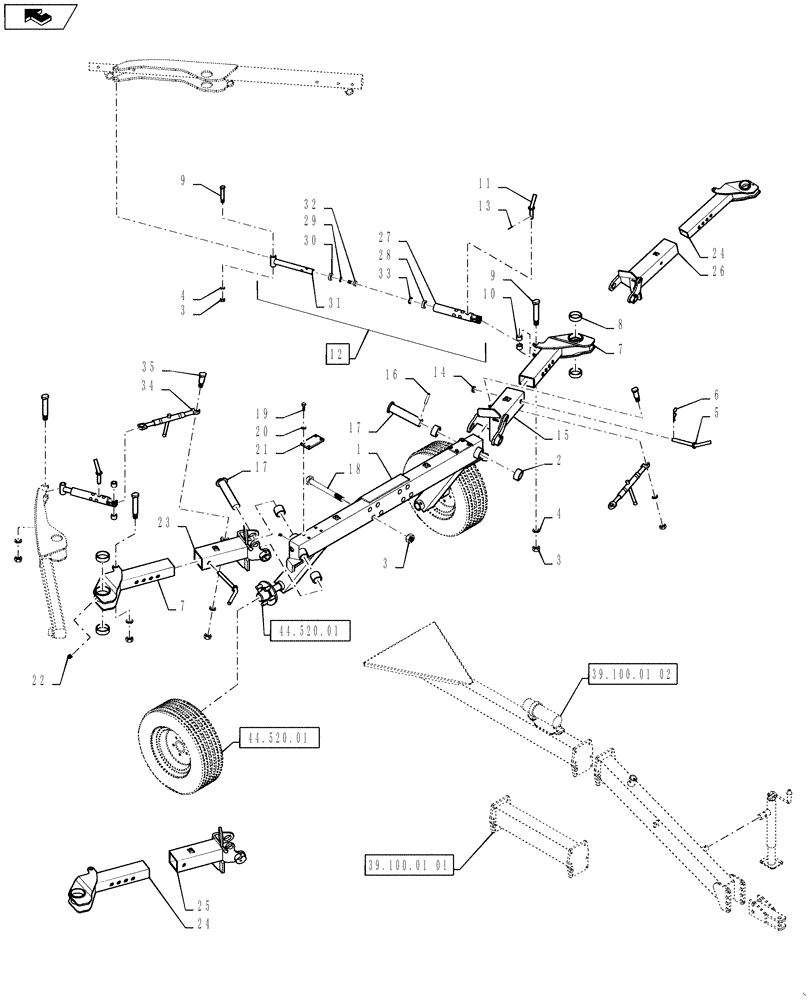

Запчасти Case IH WR102A (39.100.01[03]) - REAR FRAME (39) - FRAMES AND BALLASTING

1

84428902

FRAME

w/o Hubs, Red

1шт.

2

86729986

BUSHING,50.4mm ID x 60mm OD x 50mm L

Nylon

4шт.

3

86000441

NUT,M16 x 2.0, Cl 8

12шт.

4

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

5

84428870

CLEVIS PIN

2шт.

6

755961

COTTER PIN

2шт.

7

84428864

ARM

Extension, 8-10 Wheel, Red

2шт.

8

84428848

GUIDE BUSHING

4шт.

9

84428851

BOLT

4шт.

10

84226213

TUBE SPACER

4шт.

11

84428871

CLEVIS PIN

2шт.

12

84428883

TIE-ROD

See Ref. 27-33 for breakdown

2шт.

13

216698

COTTER PIN,0.125" OD x 1.75" L

3шт.

14

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

15

84428892

SUPPORTING ARM

Left Hand, 8-10 Wheel, Red

1шт.

16

14614070

LOCK PIN,M12 x 70, Slotted

2шт.

17

84223309

PIN

Red

2шт.

18

334967

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

8шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

20

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

21

84276228

BUMPER

2шт.

22

62161

LUBE NIPPLE,M8 x 1.25, Str

4шт.

23

84428891

SUPPORTING ARM

Right Hand, 8-10 Wheel, Red

1шт.

24

84428865

ARM

Extension, 12 Wheel Only, Red

2шт.

25

84428894

SUPPORTING ARM

Right Hand, 12 Wheel Only, Red

1шт.

26

84428895

SUPPORTING ARM

Left Hand, 12 Wheel Only, Red

1шт.

27

84428875

TIE-ROD

Part of Ref. 12, Tube, Red

2шт.

28

84428879

GUIDE BUSHING

Part of Ref. 12, Nylon

2шт.

29

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Part of Ref. 12

2шт.

30

84428877

WASHER

Part of Ref. 12

2шт.

31

84428876

ADJUSTMENT ROD

Part of Ref. 12, Red

2шт.

32

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

Part of Ref. 12

2шт.

33

300645

SNAP RING,M42, Int

Part of Ref. 12

2шт.

34

84537707

TIE-ROD

2шт.

35

84537709

BOLT

2шт.
