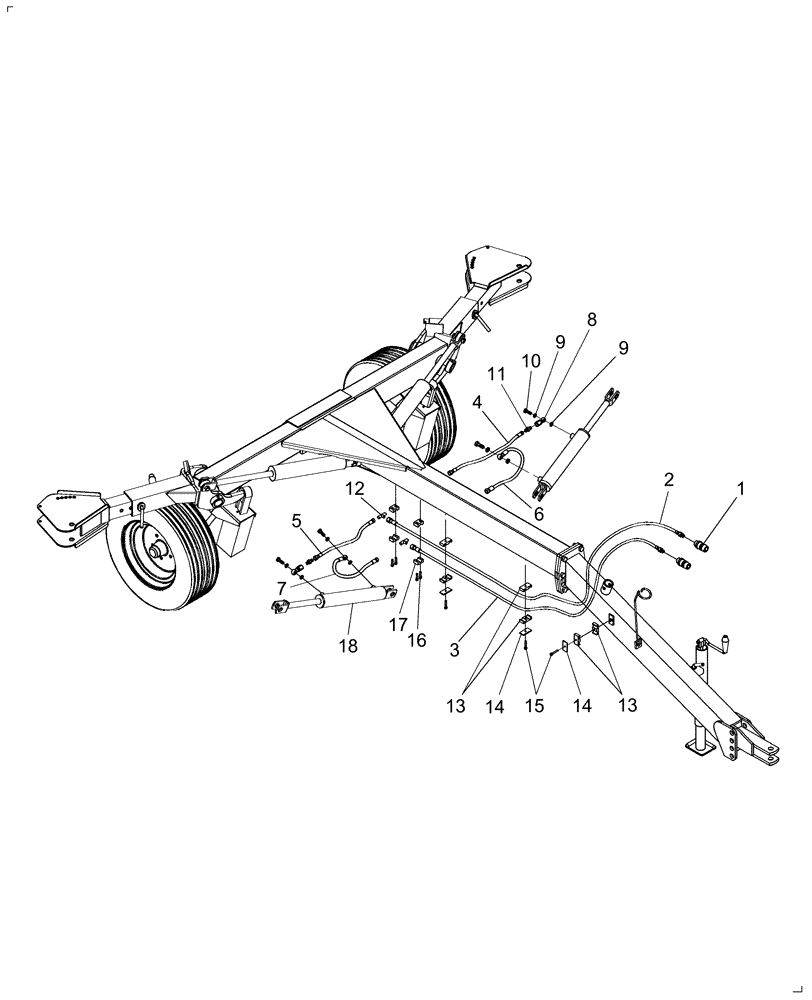

Запчасти Case IH WR101 (35.900.01[01]) - HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

9801618

QUICK MALE COUPLING,1/2" - 14

1/2"-14 NPSF

2шт.

2

84225042

HYDRAULIC HOSE

8 and 10 Wheel, 4300mm Long

1шт.

2

84225044

HYDRAULIC HOSE

12 Wheel, 5100mm Long

1шт.

3

84225043

HYDRAULIC HOSE

8 and 10 Wheel, 4150mm Long

1шт.

3

84225045

HYDRAULIC HOSE

12 Wheel Models, 4950mm Long

1шт.

4

84225036

HYDRAULIC HOSE

425mm Long

1шт.

5

84225037

HYDRAULIC HOSE

545mm Long

1шт.

6

84225033

HYDRAULIC HOSE

475mm Long

1шт.

7

84225035

HYDRAULIC HOSE

420mm Long

1шт.

8

84223322

BANJO FITTING

3/8"

2шт.

9

SIT620452

WASHER

8шт.

10

86836131

FITTING

4шт.

11

87350240

FITTING

Nipple, 3/8 BSPP ORIFICE

2шт.

12

84223315

TEE

1/4IN BSSP 60D CONE

2шт.

13

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

HYD TUBE 12.7 X 12.7

3шт.

14

384870A1

PLATE

Hose Clamp Cover

3шт.

15

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

3шт.

16

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

4шт.

17

SIT610787

HOSE CLAMP

2шт.

18

84222437

HYDRAULIC CYLINDER,Double Acting, 30mm Rod, 265mm Stroke

For Breakdown, see Fig. 35.900.03

2шт.
