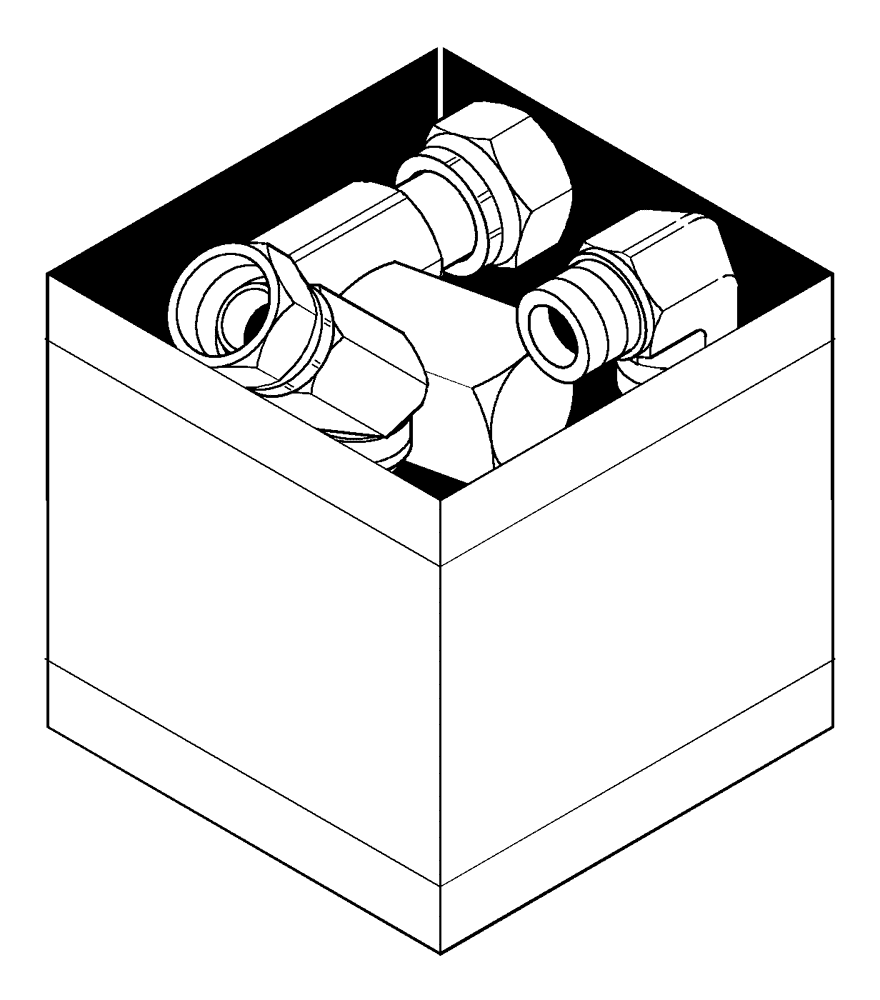

Запчасти Case IH WR101 (05.000.03) - DEALER STOCKING LIST (05) - SERVICE & MAINTENANCE

1

100037

LOCK NUT,M10 x 1.5, Cl 8

20шт.

2

161713

BEARING ASSY,20mm ID x 47mm OD x 15.2mm W

1шт.

3

210053

TAPERED BEARING,40mm ID x 80mm OD x 18mm W

1шт.

4

309085

BEARING ASSY,30mm ID x 62mm OD x 17.25mm W

2шт.

5

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

20шт.

6

412103

SLOTTED NUT

1шт.

7

86705858

BEARING ASSY,25mm ID x 52mm OD x 16.25mm W

1шт.

8

86729940

HUB

1шт.

9

86729948

TINE

200шт.

10

SIT620452

WASHER

5шт.

11

86836228

LOCK

5шт.

12

86836230

TINE

40шт.

13

87495621

HUB

1шт.

14

86836403

PIN,15mm OD

2шт.

15

86837113

COVER

1шт.

16

86837115

CAP

1шт.

17

84223316

SEALING WASHER

5шт.

18

87021907

WHEEL NUT

10шт.

19

87025929

HUB

1шт.

20

84224813

SEAL KIT

Lift Cylinder Figure 35.900.03

2шт.

21

84225626

SEAL KIT

For Opening Cyl Fig. 35.900.02 and Lift cyl Fig. 35.900.04

1шт.

22

87338358

PIN

40mm Long x 14mm OD

1шт.

23

84223305

PIN

12mm x 150mm, 30 deg

1шт.

24

87350240

FITTING

1шт.

25

86729986

BUSHING,50.4mm ID x 60mm OD x 50mm L

2шт.

26

84223310

PIN

25mm OD x 148mm OAL with M20 threads

1шт.

27

84223312

PIN

15mm x 202mm Long, 30 deg.

1шт.

28

84223313

PIN

15mm OD x 214mm Long, 30 deg.

1шт.

29

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

30

10798301

COTTER PIN,M6.3 x 36

2шт.

31

NNA301615

SNAP RING

1шт.

32

84223322

BANJO FITTING

1шт.

33

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

10шт.
