(90.105.01[02]) - DECALS, SIDE VIEWS

Запчасти Case IH WR101 (90.105.01[02]) - DECALS, SIDE VIEWS (90) - PLATFORM, CAB, BODYWORK AND DECALS

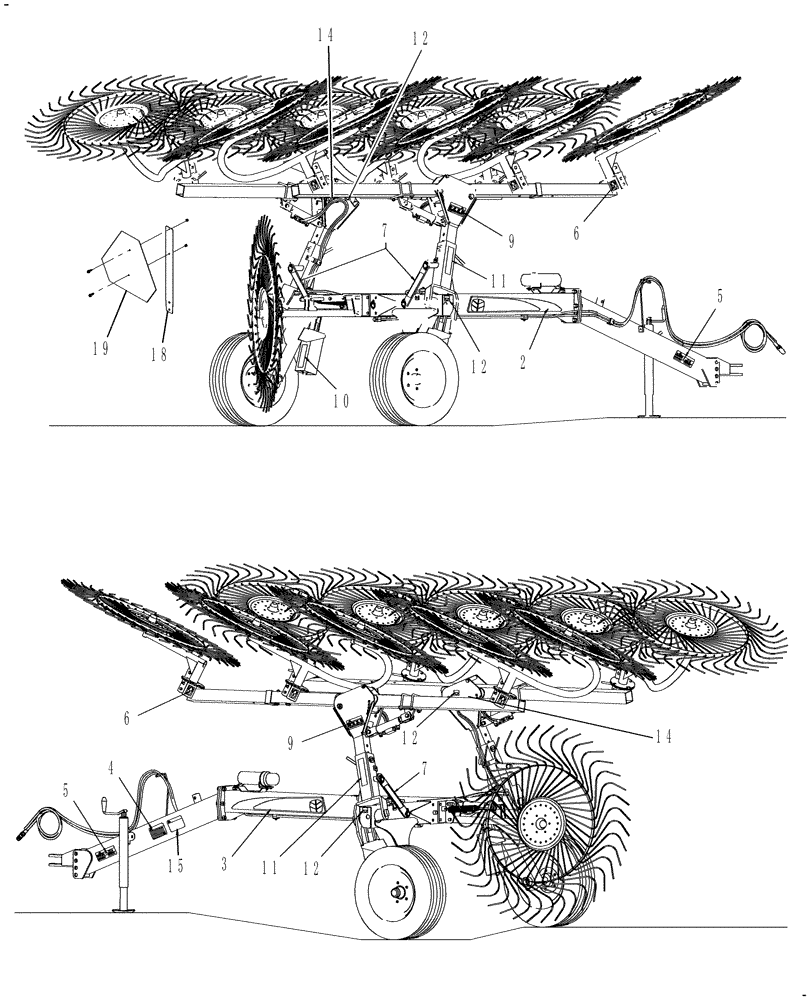

Схема запчастей Case IH WR101 - (90.105.01[02]) - DECALS, SIDE VIEWS (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
14
12
11
12
12
19
2
10
12
6
9
14
3
11
7
6
15
9
7
5
18
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

84249104

DECAL

WR101 RH

1шт.

3

84249103

DECAL

WR101 LH

1шт.

4

86643790

WARNING DECAL

Engage Safety Locking Arms When Roading

1шт.

5

84256239

WARNING DECAL

Warning, Tractor's Rearing Up May cause Machine Damage, Injury....

2шт.

6

84234465

DECAL

Lock

6шт.

7

84256241

DECAL

During Transport Always Fit The Safety Arms

2шт.

8

84256242

DECAL

Remove Before Unfolding

2шт.

9

84256240

DANGER DECAL

Crushing and Pinch Point

2шт.

10

86547783

REFLECTOR,Tape, Red Orange

Tape, Red-Orange Fluorescent

2шт.

11

86547782

REFLECTOR,YELLOW

Tape, Yellow Reflective

4шт.

12

165109

DECAL

Lube Fitting

4шт.

14

84270354

DANGER DECAL

2шт.

15

86624301

WARNING DECAL

Before Operating Machine, Read Operator's Manual

1шт.

18

86535159

ARM

Holder for smv sign

1шт.

19

86547710

EMBLEM

KIT SMV Sign

1шт.
