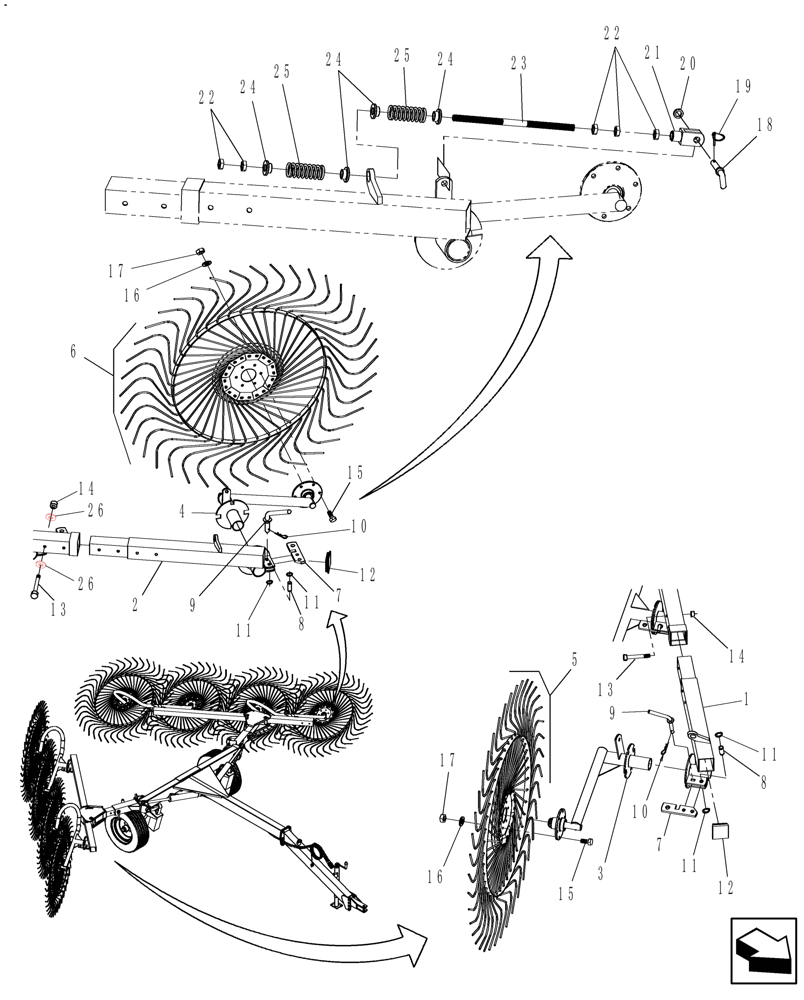

Запчасти Case IH WR101 (60.630.05) - WHEEL CONVERSION KIT, 8 TO 10 RAKE WHEEL - 716930076 (60) - PRODUCT FEEDING

1

84222424

EXTENSION

RH

1шт.

2

84222425

EXTENSION

LH

1шт.

3

84222421

ARM

RH

1шт.

4

84222423

ARM

LH

1шт.

5

86729952

WHEEL ASSY

RH

1шт.

6

86729950

WHEEL ASSY

LH

1шт.

7

84222407

STOP

Lock

2шт.

8

87338358

PIN

40mm Long x 14mm OD

2шт.

9

84223305

PIN

12mm x 150mm, 30 deg

2шт.

10

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

11

NNA301615

SNAP RING

4шт.

12

84222440

PLASTIC PLUG

2шт.

13

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

4шт.

14

100038

NUT,M12 x 1.75, Cl 8

4шт.

15

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

12шт.

16

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

12шт.

17

100016

NUT,M10 x 1.5, Cl 8

12шт.

18

84241863

PIN

15mm OD x 125mm long, 30 deg

2шт.

19

87459046

LINCH PIN

4.76mm x 39.69mm

2шт.

20

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

21

84241854

YOKE

End M16 Plated

2шт.

22

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

10шт.

23

84241865

THREADED ROD

M16 x 350mm long

2шт.

24

84231275

GUIDE

17mm ID

8шт.

25

84241853

COMPRESSION SPRING

Compression, 100mm long x 35mm OD

4шт.

26

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

8шт.
