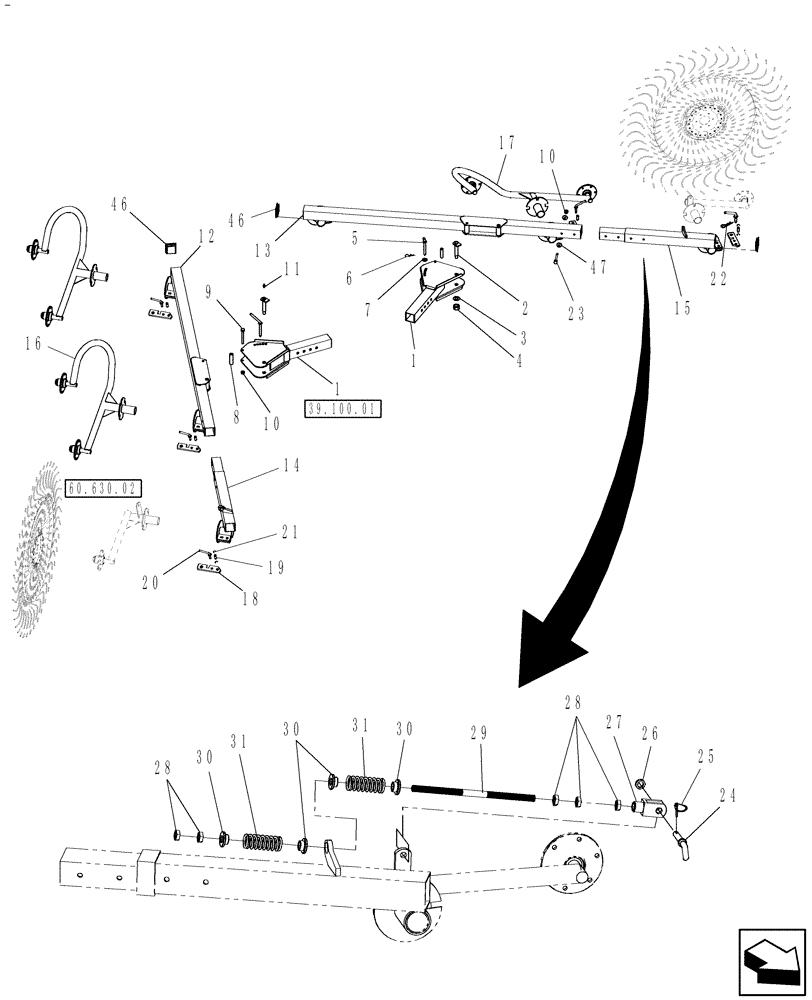

Запчасти Case IH WR101 (60.630.01[01]) - REAR LIFT LINKAGE 8 AND 10 WHEEL RAKE (60) - PRODUCT FEEDING

1

84222416

ARM

2шт.

2

84223310

PIN

25mm OD x 148mm OAL with M20 threads

2шт.

3

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

4

380424

NUT,M20 x 2.5, Cl 8

2шт.

5

84223312

PIN

15mm x 202mm Long, 30 deg.

2шт.

6

755961

COTTER PIN

2шт.

7

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

8

84223306

BUSHING

13mm ID x 25mm OD x 93mm Lng.

2шт.

9

309308

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

2шт.

10

100038

NUT,M12 x 1.75, Cl 8

6шт.

11

62161

LUBE NIPPLE,M8 x 1.25, Str

12/14шт.

12

84222417

FRAME

Pipe, RH

1шт.

13

84222418

FRAME

Pipe, LH

1шт.

14

84222424

EXTENSION

RH, 10 Wheel Only

1шт.

15

84222425

EXTENSION

LH, 10 Wheel Only

1шт.

16

84222420

ARM

RH

2/3шт.

17

84222422

ARM

LH

2/3шт.

18

84222407

STOP

6шт.

19

87338358

PIN

40mm Long x 14mm OD

6шт.

20

84223305

PIN

12mm x 150mm, 30 deg

6шт.

21

NNA301615

SNAP RING

12шт.

22

216698

COTTER PIN,0.125" OD x 1.75" L

6шт.

23

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

4шт.

24

84241863

PIN

15mm OD x 125mm Long, 30 deg

2шт.

10 Wheel Only

1шт.

25

87459046

LINCH PIN

4.76mm x 39.69mm

2шт.

10 Wheel Only

1шт.

26

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

10 Wheel Only

1шт.

27

84241854

YOKE

End, M16

2шт.

10 Wheel Only

1шт.

28

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

10шт.

10 Wheel Only

1шт.

29

84241865

THREADED ROD

16mm X 350mm Long

2шт.

10 Wheel Only

1шт.

30

84231275

GUIDE

8шт.

10 Wheel Only

1шт.

31

84241853

COMPRESSION SPRING

Compression, 100mm Long x 35mm OD

4шт.

10 Wheel Only

1шт.

46

84222440

PLASTIC PLUG

4шт.

47

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

8 & 10 Wheel Only

8шт.

10 Wheel Only

1шт.
