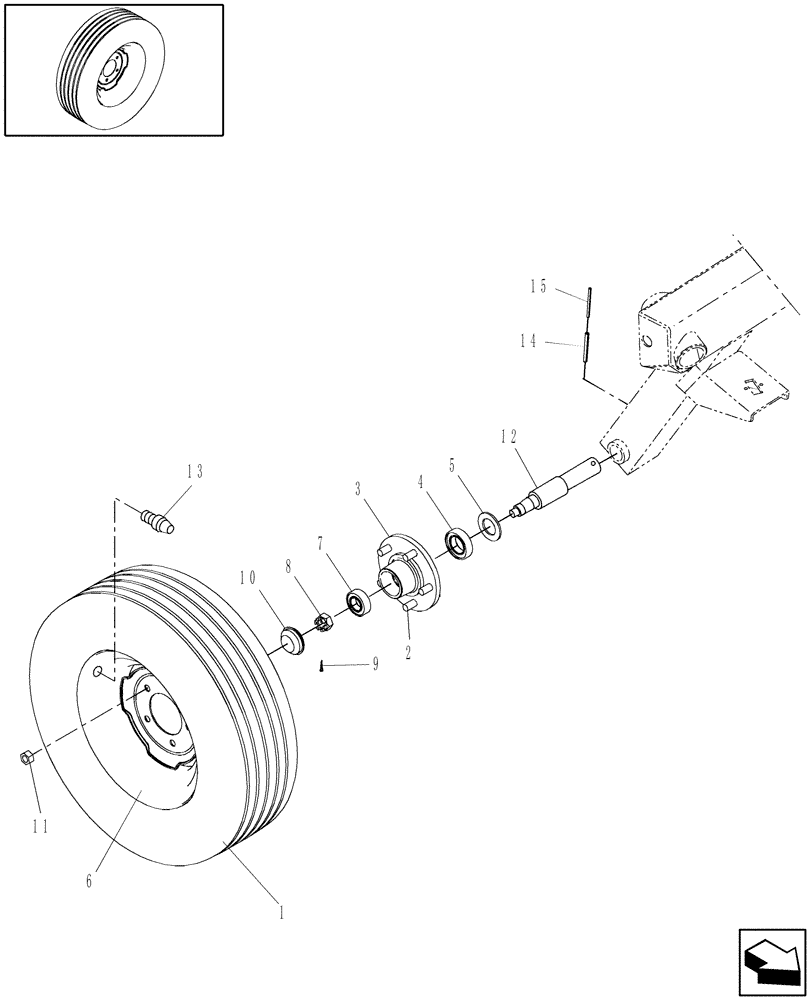

Запчасти Case IH WR101 (44.520.01) - WHEELS, REAR (44) - WHEELS

1

PL

PROCURE LOCALLY

Tire, 205-75 x 15"

2шт.

2

86900393

SPECIAL BOLT

M16 x 1.5 x 45

10шт.

3

86729940

HUB

2шт.

4

210053

TAPERED BEARING,40mm ID x 80mm OD x 18mm W

2шт.

5

86837117

COVER

Dust

2шт.

6

86729958

RIM

6 x 15, 5 Bolt Holes

2шт.

7

309085

BEARING ASSY,30mm ID x 62mm OD x 17.25mm W

2шт.

8

86837120

SLOTTED NUT,M27 x 1.5

2шт.

9

300595

COTTER PIN,M4 x 40

2шт.

10

86837119

CAP

2шт.

11

87021907

WHEEL NUT

M16 x 1.5

10шт.

12

84248704

AXLE

Spindle

2шт.

13

62161

LUBE NIPPLE,M8 x 1.25, Str

2шт.

14

9801567

LOCK PIN,12mm OD x 65mm L

12mm x 70mm

2шт.

15

9801568

ROLL PIN

M7 x 70mm

2шт.
