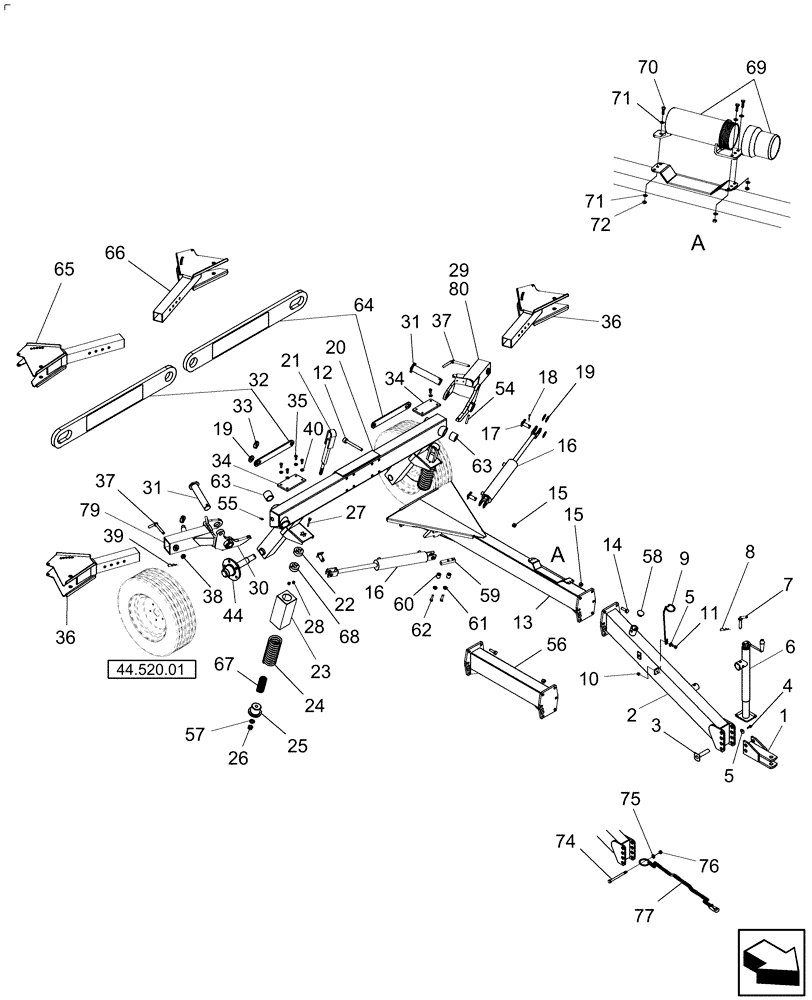

Запчасти Case IH WR101 (39.100.01) - FRONT FRAME (39) - FRAMES AND BALLASTING

1

84222433

HITCH

1шт.

2

84222409

DRAWBAR

1шт.

3

86836401

PIN

25mm OD x 139mm OAL

2шт.

4

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

5

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

6

SIT220197

STAND

1шт.

7

86836402

PIN

15mm OD x 165mm Lng, 30 deg

1шт.

8

216698

COTTER PIN,0.125" OD x 1.75" L

1шт.

9

84222406

TUBE

1шт.

10

100038

NUT,M12 x 1.75, Cl 8

1шт.

11

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

12

334967

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

8шт.

13

84222410

DRAWBAR

1шт.

14

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

12шт.

15

86000441

NUT,M16 x 2.0, Cl 8

20шт.

16

84222437

HYDRAULIC CYLINDER,Double Acting, 30mm Rod, 265mm Stroke

70mm ID x 365mm Long

2шт.

17

84223314

PIN

25mm OD x 70mm OAL

4шт.

18

10798301

COTTER PIN,M6.3 x 36

4шт.

19

86511328

WASHER,25mm ID x 44mm OD x 4mm Thk

16шт.

20

84222411

FRAME

Includes both spindles and both pins, See breakdown Fig 44.520.01

1шт.

21

84222412

TIE-ROD

2шт.

22

84222419

SLIDING PAD

2шт.

23

84222432

HOOD

2шт.

24

84222413

SPRING

100mm OD x 264mm Lng

2шт.

25

84223307

HUB

2шт.

26

380424

NUT,M20 x 2.5, Cl 8

2шт.

27

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

28

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

29

84222414

ARM

LH, 8 and 10 Wheel Only

1шт.

30

84222415

ARM

RH, 8 and 10 Wheel Only

1шт.

31

84223309

PIN

50mm OD x 257mm OAL, Usuable Length 228mm

2шт.

32

84222434

ARM

1шт.

33

285312

PIN

With Ring, 5/16" OD x 2-11/32" Long

4шт.

34

84276228

BUMPER

2шт.

35

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

36

84222416

ARM

8 and 10 Wheel Only

2шт.

37

84223313

PIN

15mm OD x 214mm Long, 30 deg.

2шт.

38

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

39

755961

COTTER PIN

2шт.

40

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

44

REF

INSTRUCTION

See Figure 44.520.01 for Breakdown

1шт.

54

14614070

LOCK PIN,M12 x 70, Slotted

2шт.

55

62161

LUBE NIPPLE,M8 x 1.25, Str

2шт.

56

84222431

DRAWBAR

12 Wheel Only

1шт.

57

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

58

84225551

PLASTIC PLUG

1шт.

59

84222438

STOP LOCK

2шт.

60

84222439

RUBBER MOUNTING

4шт.

61

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

62

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

4шт.

63

86729986

BUSHING,50.4mm ID x 60mm OD x 50mm L

4шт.

64

84222435

ARM

1шт.

65

84248732

ARM

RH, 12 Wheel

1шт.

66

84248733

ARM

LH, 12 Wheel

1шт.

67

84248709

SPRING

12 Wheel

2шт.

68

84248701

SPRING-DISC

12 Wheel

2шт.

69

SML49722

HOLDER

Holder, Operator Manual

1шт.

70

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

71

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6шт.

72

353308

NUT,M6 x 1.0, Cl 8

3шт.

74

86639173

BOLT,Hex, M22 x 160mm, Cl 10.9

1шт.

75

86509829

LOCK WASHER,24.5mm ID x 40mm OD x 5mm Thk

1шт.

76

86729941

NUT,M22 x 2.5, Cl 8

1шт.

77

850116

CHAIN

1шт.

79

84248735

ARM

RH, 12 Wheel

1шт.

80

84248736

ARM

LH, 12 Wheel

1шт.
