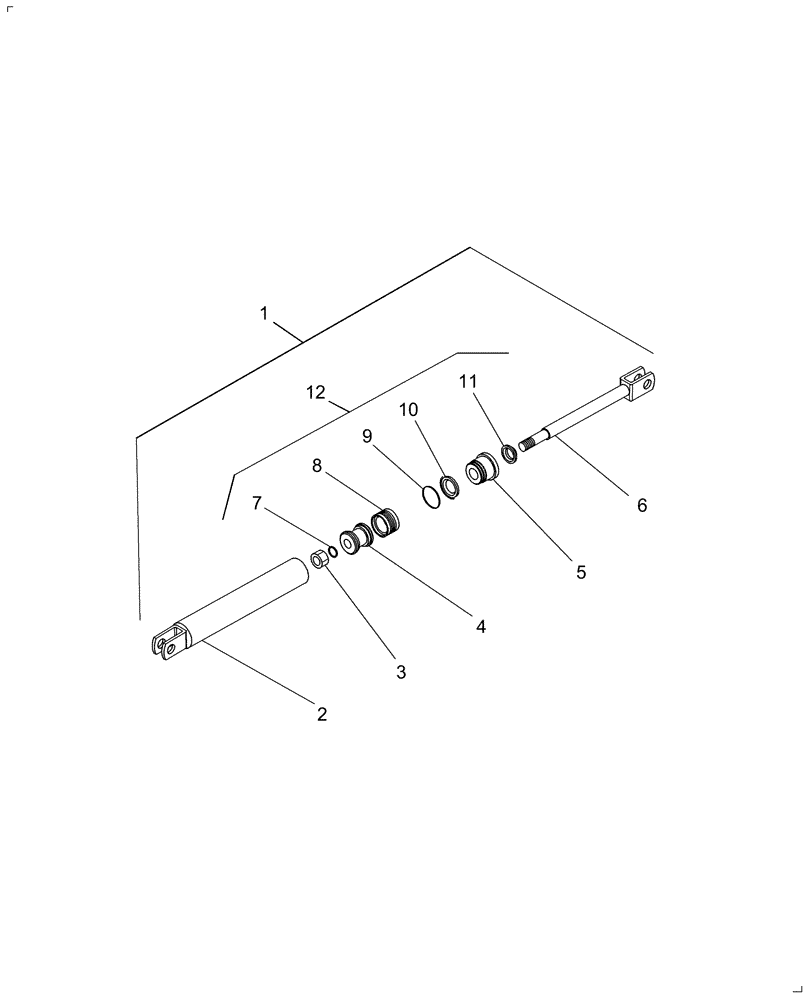

Запчасти Case IH WR101 (35.900.03) - LIFT CYLINDER, HYDRAULIC GROUP (35) - HYDRAULIC SYSTEMS

1

84222437

HYDRAULIC CYLINDER,Double Acting, 30mm Rod, 265mm Stroke

70mm ID x 365mm Long

2шт.

2

NSS

NOT SOLD SEPARAT

2шт.

3

12575321

NUT,M24 x 2, Cl 10

2шт.

4

84224810

PISTON

2шт.

5

84224812

CYLINDER HEAD

2шт.

6

84224811

PISTON ROD

2шт.

7

NSS

NOT SOLD SEPARAT

2шт.

8

NSS

NOT SOLD SEPARAT

2шт.

9

NSS

NOT SOLD SEPARAT

2шт.

10

NSS

NOT SOLD SEPARAT

2шт.

11

NSS

NOT SOLD SEPARAT

2шт.

12

84224813

SEAL KIT

Applies To Before MY13 And Older Units

2шт.

12

47618174

SEAL KIT

Applies To Before MY14 And Newer Units

2шт.
