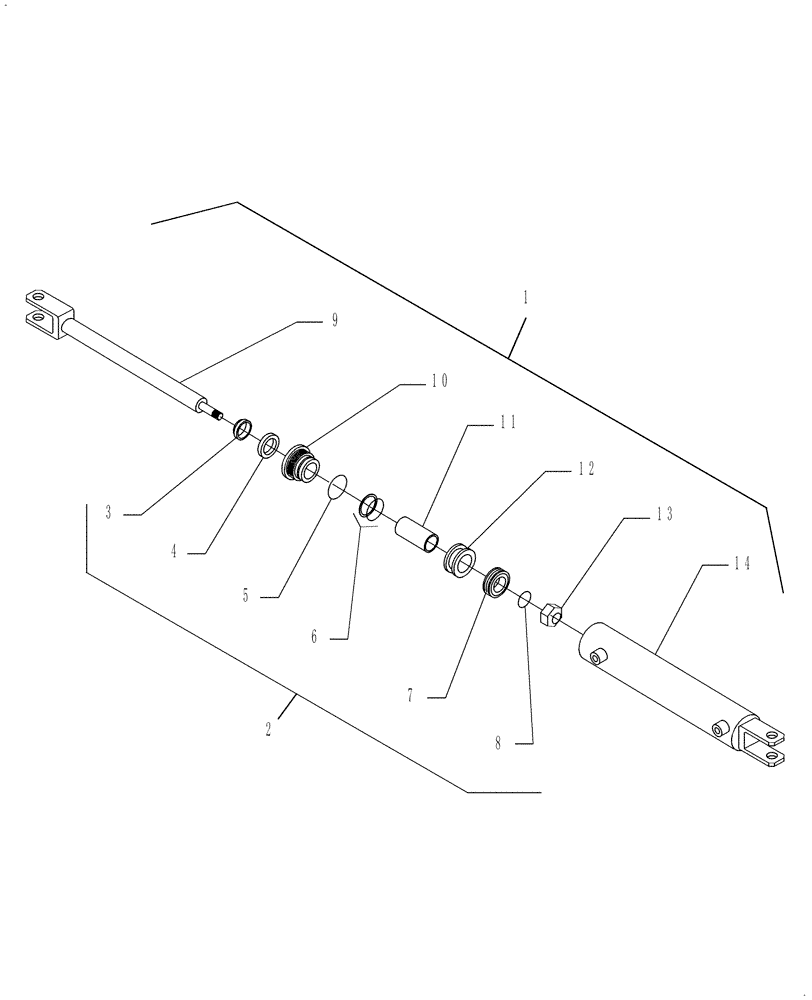

Запчасти Case IH WR101 (35.900.02) - OPENING CYLINDER COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84225591

HYDRAULIC CYLINDER,Double Acting, 20mm Rod, 90mm Stroke

Assembly, 385mm Long x 40mm ID

2шт.

2

84225626

SEAL KIT

Contains Ref. 3 through 8

2шт.

3

NSS

NOT SOLD SEPARAT

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

84225622

PISTON ROD

2шт.

10

84225623

CYLINDER HEAD

2шт.

11

84225625

SPACER

2шт.

12

84225624

PISTON

2шт.

13

12575021

NUT,M18 x 1.5, Cl 10

2шт.
