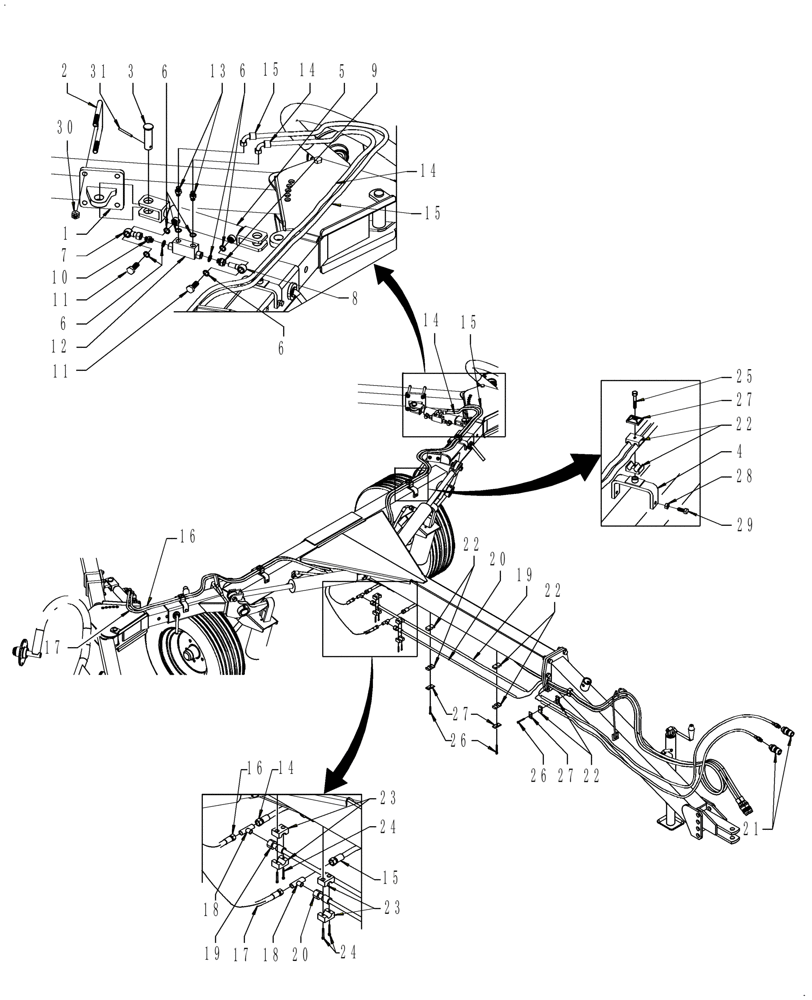

Запчасти Case IH WR101 (35.900.01[02]) - HYDRAULIC OPENING ATTACHMENT - 715677036 AND 715677026 (35) - HYDRAULIC SYSTEMS

W0

ORDER WHOLEGOODS

FIA Kit 715677026, 8 and 10 Wheel

1шт.

W0

ORDER WHOLEGOODS

FIA Kit 715677036, 12 Wheel

1шт.

1

84225592

SUPPORT

2шт.

2

84225590

U-BOLT

4шт.

3

412131

CLEVIS PIN,M20 x 50

4шт.

4

84225589

SUPPORT

4шт.

5

84225591

HYDRAULIC CYLINDER,Double Acting, 20mm Rod, 90mm Stroke

Breakdown on 35.900.02

2шт.

6

84223316

SEALING WASHER

16шт.

7

84223323

BANJO FITTING

2шт.

8

84222436

BANJO FITTING

2шт.

9

84224850

HYD CONNECTOR

2шт.

10

84224848

NIPPLE

2шт.

11

84223317

BANJO BOLT

1/4BSPP

4шт.

12

84223324

HYDRAULIC VALVE

2шт.

13

84224849

NIPPLE

4шт.

14

84225038

HYDRAULIC HOSE

1900mm Long

1шт.

15

84225039

HYDRAULIC HOSE

1250mm Long

1шт.

16

84225040

HYDRAULIC HOSE

2000mm Long

1шт.

17

84225041

HYDRAULIC HOSE

2050mm Long

1шт.

18

84223315

TEE

1/4 bssp

2шт.

19

84225044

HYDRAULIC HOSE

12 Wheel, 5100mm Long

1шт.

19

84225042

HYDRAULIC HOSE

8 & 10 Wheel, 4300mm Long

1шт.

20

84225045

HYDRAULIC HOSE

12 Wheel Models, 4950mm Long

1шт.

20

84225043

HYDRAULIC HOSE

8 & 10 Wheel, 4150mm Long

1шт.

21

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

22

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

7шт.

23

SIT610787

HOSE CLAMP

4шт.

24

86512137

HEX SOC SCREW,M6 x 60mm, Cl 12.9, Full Thd

4шт.

25

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

4шт.

26

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

27

384870A1

PLATE

7шт.

28

9706690

NUT,M8 x 1.25, Cl 8

8шт.

29

84223325

SCREW,Hex, M8 x 25mm, Cl 8.8

M8 x 25, chamfer

8шт.

30

100038

NUT,M12 x 1.75, Cl 8

8шт.

31

300868

ROLL PIN,6mm OD x 36mm L, Slotted

4шт.
