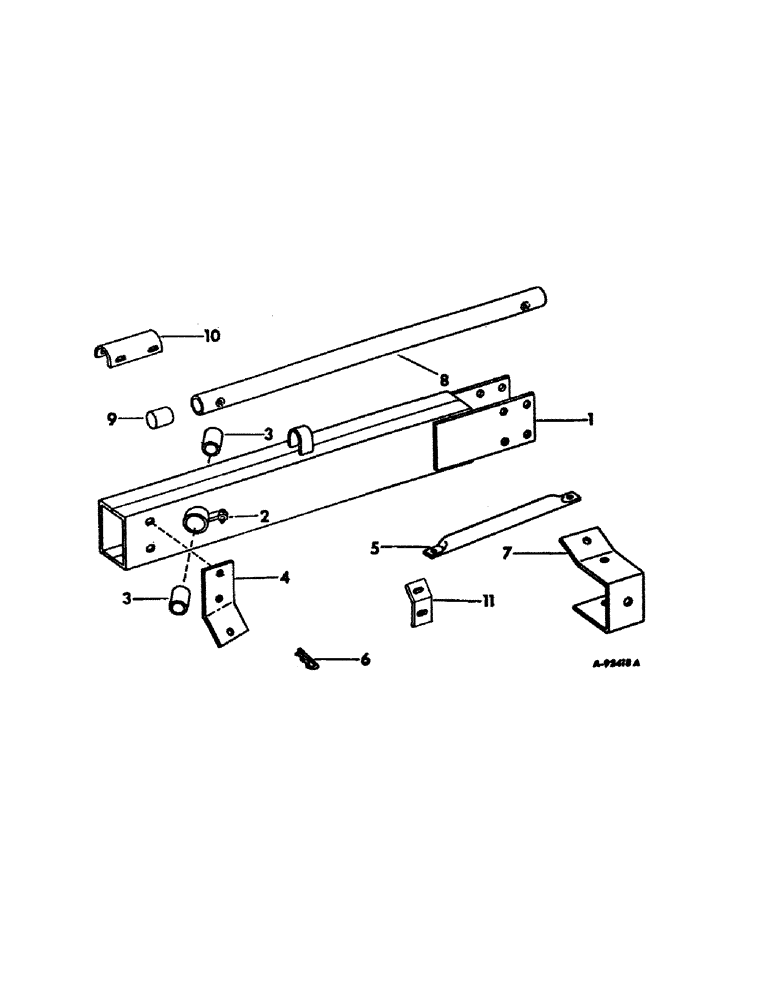

Запчасти Case IH 30 (C-08) - RAKING WHEEL EXTENSION FRONT ATTACHMENT, SIXTH WHEEL, FOR FIVE WHEEL RAKES ONLY

1

492544R91

EXTENSION W/BUSHINGS, front

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2-13 x 4-1/4 C-Z hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

4шт.

2

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8-27 special short str lub

1шт.

3

491469R1

BUSHING

2шт.

4

491512R1

BAR, extension

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2-13 x 4-1/2 C-Z hex-hd cap

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

2шт.

5

491513R1

PIPE, tongue brace

1шт.

23275R1

PIN, 5/8 x 1 C-Z std-hd

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

6

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

1шт.

7

491514R1

BRACKET, tongue

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2 x 4-1/4 C-Z hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

1шт.

8

491515R1

PIPE, lift extension

1шт.

9

491518R1

PIN, lift extension pipe

1шт.

10

491516R1

BRACKET, extension

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 C-Z hex-hd cap

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 C-Z hex-hd cap

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

2шт.

11

491511R2

CLIP, plate

1шт.

18516R1

BOLT,3/8" x 3 3/4"

3/8-16 x 3-3/4 ZND sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

1шт.
