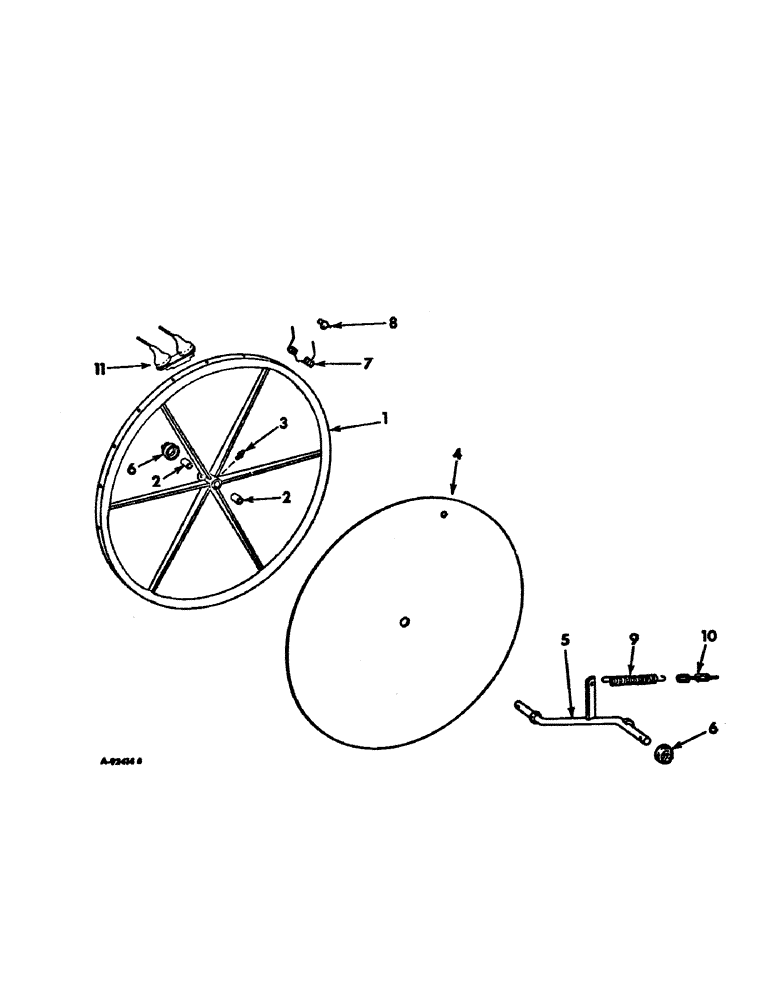

Запчасти Case IH 30 (C-07) - RAKING WHEEL, FOR FIVE AND SEVEN WHEEL RAKES

1

492543R91

WHEEL

W/BUSHINGS, raking

1шт.

2

491469R1

BUSHING

raking wheel

2шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

4

491470R1

SHIELD

raking wheel

1шт.

5

491473R1

ARM ASSY, lift

1шт.

608085R1

WASHER

1-13/32 x 2 16 ga C-Z

4шт.

21794R1

WASHER

1-13/32 x 2 x 20 ga C-Z

2шт.

6

491472R1

CUP WASHER

cup

2шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

2шт.

7

491478R1

SPRING

TOOTH, wheel rake, spring coil type

18шт.

8

491479R2

CLIP

wheel rake tooth

18шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

SCREW, 3/8-16 x 1/4 znd hex-hd mach

18шт.

120377

NUT,3/8" - 16, Gr 5

18шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

9

491481R1

SPRING

extension

1шт.

10

CHAIN, lift, 4 links, .218 dia, 12.6 links per foot, purchase locally

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8-16 x 2-1/4 C-Z hex-hd cap

1шт.

473371R1

FLANGE NUT

NUT, 3/8-16 C-Z hex. flange lock

1шт.

11

540040R1

TOOTH

ASSY, wheel rake, rubber type

18шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

SCREW, 3/8-16 x 1 znd hex-hd mach

18шт.

120377

NUT,3/8" - 16, Gr 5

18шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.
