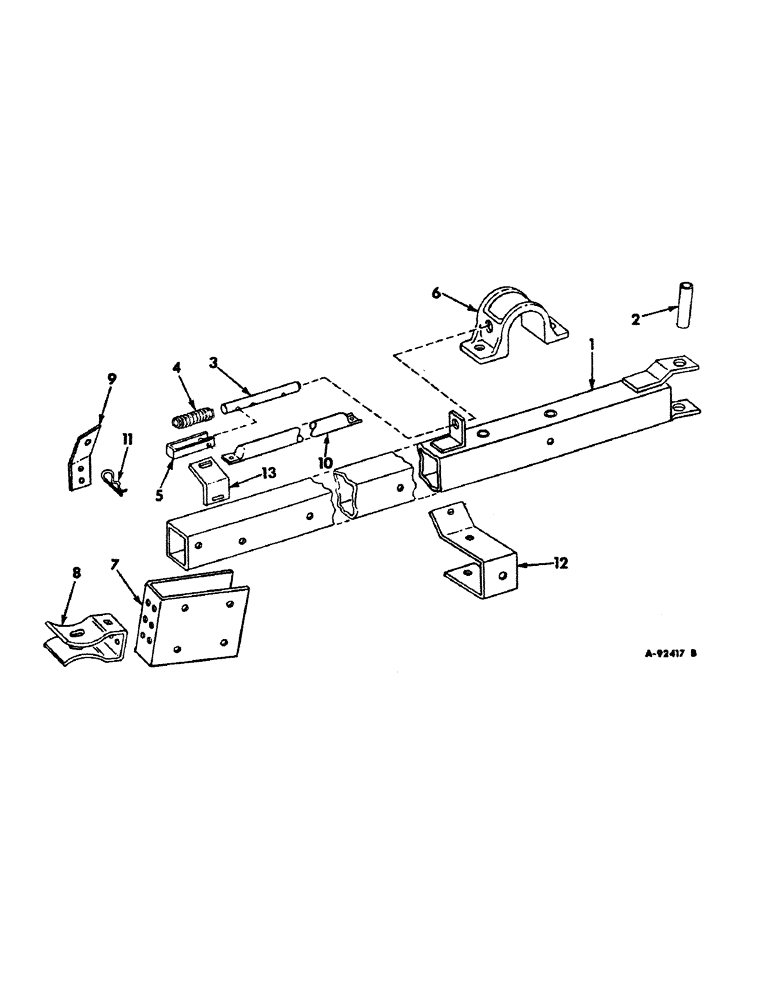

Запчасти Case IH 30 (C-06) - TONGUE, HITCH PLATE, YOKE, BRACE AND RELATED PARTS, FOR FIVE AND SEVEN WHEEL RAKES

1

491528R92

TONGUE W/PRODUCT GRAPHIC ASSY

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

SCREW, 3/4-10 x 5-1/4 C-Z hex-hd cap

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

22244R1

LOCK NUT

3/4-10 C-Z nylon insert

1шт.

2

491463R1

SPACER

1шт.

3

459654R1

PIN

STUD, dial lock

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

4

460611R1

SPRING

compression

1шт.

5

459677R1

CLEVIS, dial hitch

1шт.

455184R1

LOCK PIN,5/16" x 3", Slotted

Pin, 5/16" x 3", Slotted

1шт.

6

491461R1

STRAP, hitch adjusting

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 x 4-1/2 znd hex-hd cap

2шт.

22765R1

WASHER

21/32 x 1-1/2 x 22 ga C-Z, between strap and tongue, (or as required)

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

7

491462R1

PLATE, hitch yoke

1шт.

271760

SHAFT,Hex, 5/8" - 18 x 5", Gr 5

SCREW, 5/8-18 x 5 C-Z hex-hd cap

2шт.

425-1110

NUT,5/8"-18, G5

5/8-18 C-Z hex.

4шт.

8

484505R2

YOKE

hitch

1шт.

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

SCREW, 5/8-18 x 1-3/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1110

NUT,5/8"-18, G5

5/8-18 C-Z hex.

2шт.

9

491512R1

BAR, extension, for 7 wheel rake

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2-13 x 4-1/2 znd hex-hd cap

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

2шт.

10

491513R1

PIPE, tongue brace, for 7 wheel rake

1шт.

23275R1

PIN, 5/8 x 1 C-Z std-hd

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

11

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot., for 7 wheel rake

1шт.

12

491514R1

BRACKET, tongue, for 7 wheel rake

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2-13 x 4-1/4 znd hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 x 4-1/4 znd hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

1шт.

13

491511R2

CLIP, pipe, for 7 wheel rake

1шт.

18516R1

BOLT,3/8" x 3 3/4"

3/8-16 x 3-3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

1шт.
