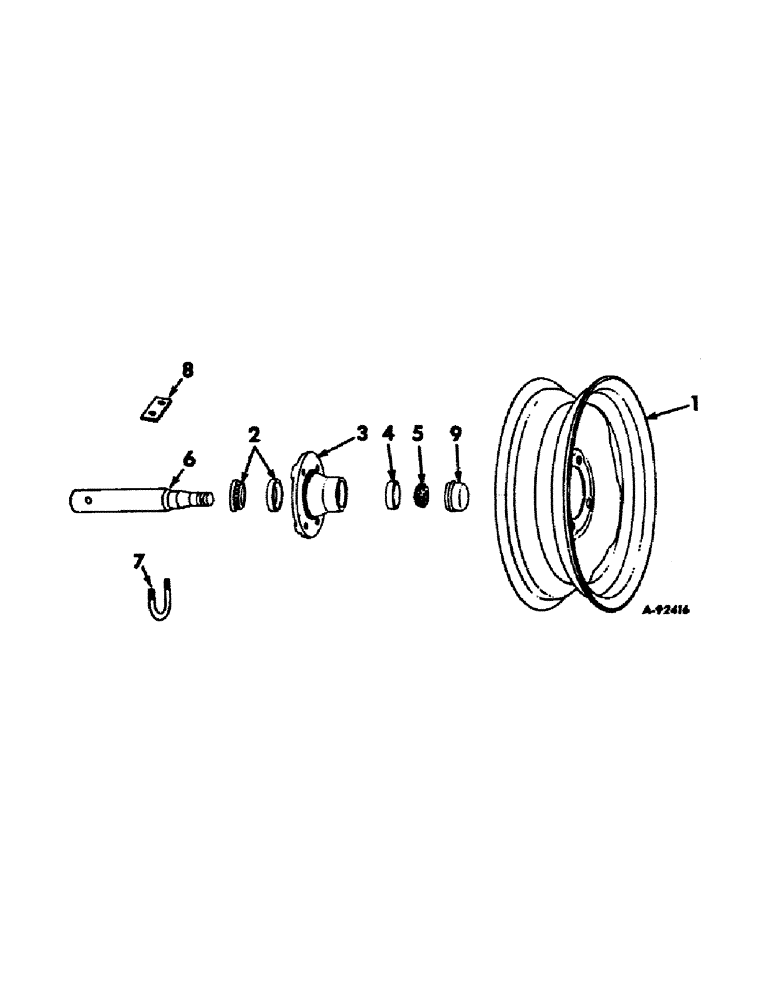

Запчасти Case IH 30 (C-05) - WHEELS, FOR FIVE AND SEVEN WHEEL RAKES

1

662994R91

WHEEL

ASSY, 15 in., for 5.90 x 15 rib implement tire

2шт.

1

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in., for 7.35-14 or 7.75-14 rib implement tire

2шт.

2

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, wheel hub inner

2шт.

3

465492R2

HUB

wheel

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 15/16 C-Z conical hd, wheel hub

8шт.

4

651814R1

BEARING CUP

BEARING, wheel hub outer cup

2шт.

5

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, wheel hub outer cone

2шт.

5

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

6

491455R1

SPINDLE, wheel

2шт.

685548R1

NUT

5/8-18 C-Z hex. lock

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

69442D

NUT

3/4-16 slt hex. jam

2шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

7

491456R2

U-BOLT, spindle attaching

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

4шт.

8

492112R1

SHIM, retainer

2шт.

9

651194R1

CAP

wheel hub

2шт.
