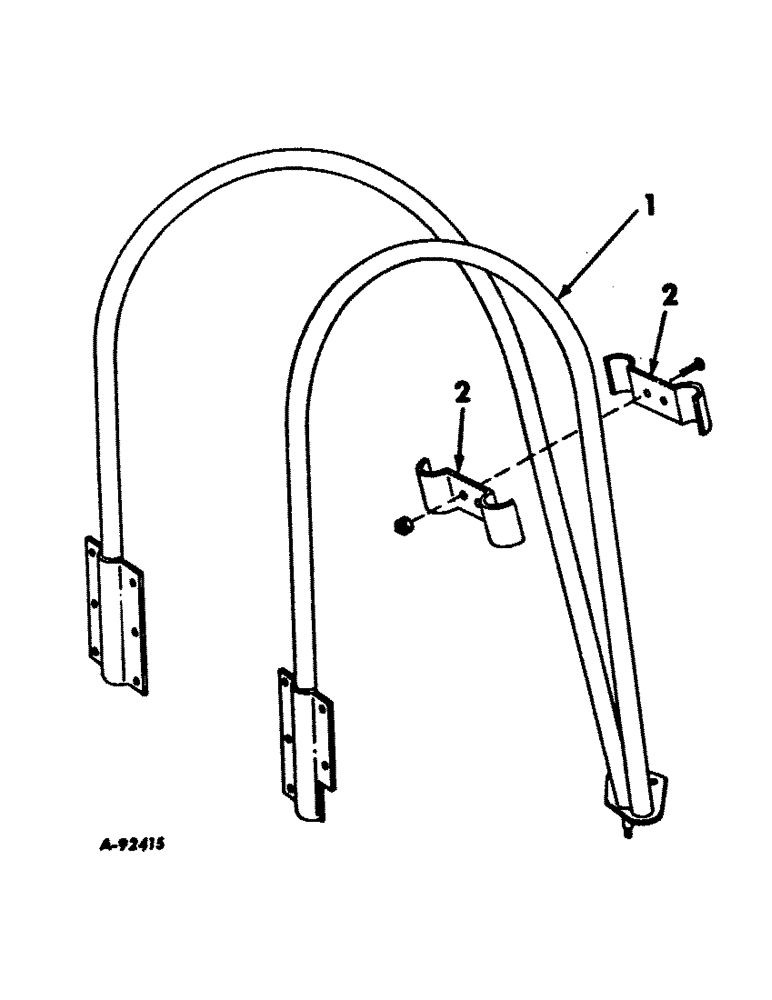

Запчасти Case IH 30 (C-04) - AXLE PIPE ASSY, FOR FIVE AND SEVEN WHEEL RAKES

1

491448R1

PIPE ASSY, axle RH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

11шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

50шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z two-way lock

11шт.

2

492542R1

CLAMP, axle

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.
