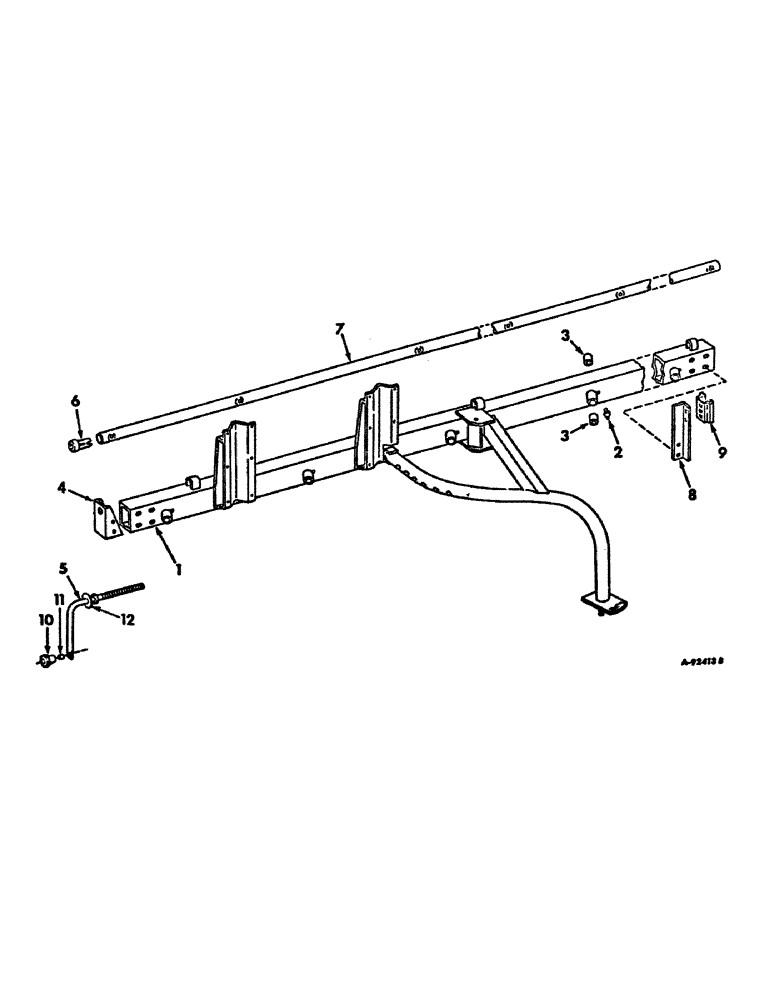

Запчасти Case IH 30 (C-03) - MAIN FRAME AND LIFT, FOR FIVE AND SEVEN WHEEL RAKES

1

492535R91

FRAME W/BUSHINGS, main, for 5 wheel rakes

1шт.

1

546662R91

FRAME W/BUSHINGS, main, for 7 wheel rakes

1шт.

2

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8-27 PTF special short str lubrication, 5 used for 5 wheel rakes, 7 used for 7 wheel rakes

1шт.

3

491469R1

BUSHING

main frame hub, 10 used for 5 wheel rakes, 14 used for 7 wheel rakes

1шт.

4

491498R1

SUPPORT, lift screw

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2-13 x 4-1/4 C-Z hex-hd cap

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

2шт.

5

491501R1

SCREW ASSY, lift

1шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

2шт.

6

491504R1

NUT, lift screw

1шт.

7

491527R1

PIPE, lift, for 5 wheel rakes

1шт.

7

546665R1

PIPE, lift, for 7 wheel rakes

1шт.

8

491505R1

ANGLE, socket mounted

1шт.

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

SCREW, 1/2-13 x 3/4 C-Z hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

2шт.

9

398976R1

BRACKET

SOCKET, light bracket, replaces 363919R1

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16-18 x 1/2 C-Z sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z hex. flange lock

2шт.

10

492113R1

KNOB, screw lift

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 znd hex-hd cap

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

1шт.

11

492540R1

SPACER, knob

1шт.

12

491503R1

WASHER, thrust

1шт.
