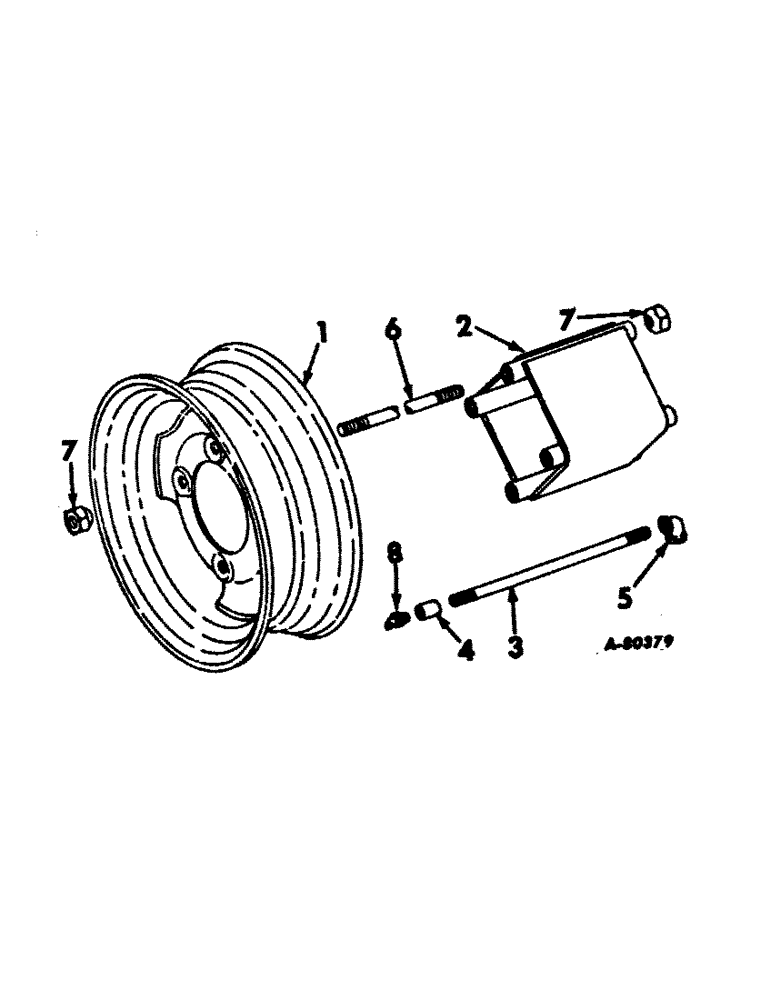

Запчасти Case IH 30 (C-13A) - DUAL WHEEL ATTACHMENT

1

473242R91

WHEEL ASSY, 15 x 4J main, recommended tire sizes, 5.90 x 15 in. rib implement tire

2шт.

1

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 x 5KB main, recommended tire sizes, 7.35 x 14 in. or 7.75 x 14 in. rib implement tires

2шт.

2

457857R11

SPACER ASSY, dual wheel

2шт.

3

187746

NIPPLE, 1/8 x 7-1/2 pipe

2шт.

4

187394

CONNECTOR, ELEC,1/8" NPT, Fem

COUPLING, 1/8 pipe

2шт.

5

19385R1

ADAPTER,90 Degree, 1/8"-27

1/8-27 PTF 90 deg angle elbow

2шт.

6

473241R1

STUD

8шт.

7

453770R1

WHEEL NUT

wheel hub bolt

16шт.

8

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg lub, not included in attachment

1шт.

102594

SCREW, 3/8-16 x 5/8 hex-soc-hd cup-pt set, set screw furnished but not required

1шт.
