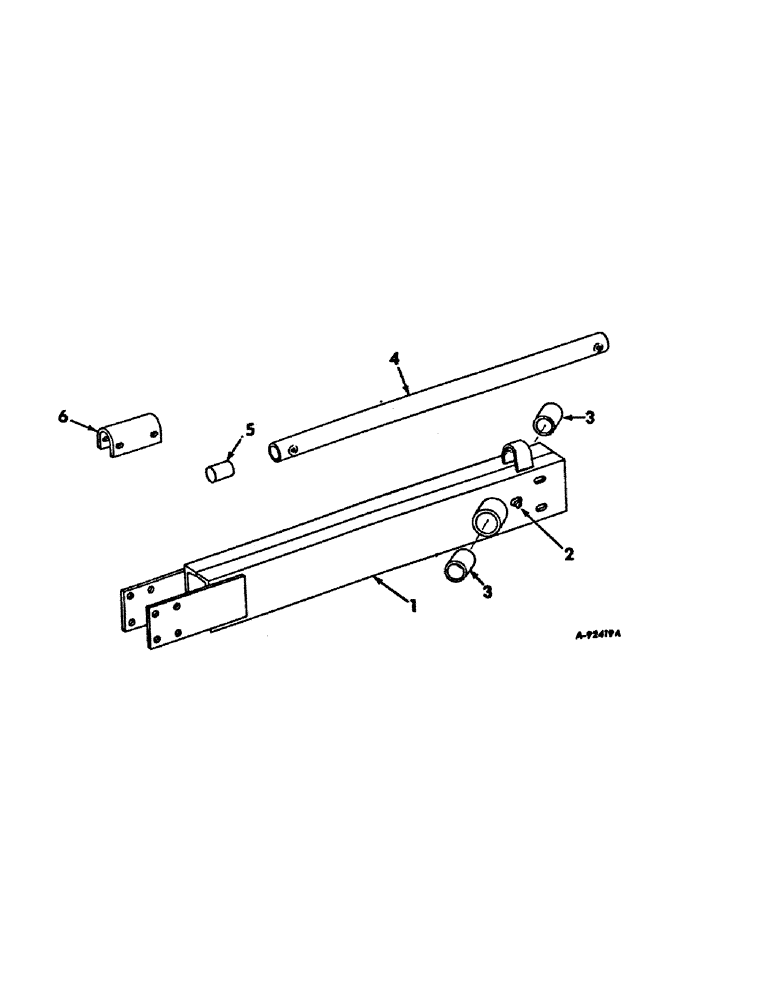

Запчасти Case IH 30 (C-10) - RAKING WHEEL EXTENSION REAR ATTACHMENT, SEVENTH WHEEL, FOR FIVE WHEEL RAKES ONLY

1

492545R91

EXTENSION W/BUSHINGS, rear

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2-13 x 4-1/4 C-Z hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

4шт.

2

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8-27 special short str lub

1шт.

3

491469R1

BUSHING

2шт.

4

491515R1

PIPE, lift extension

1шт.

5

491518R1

PIN, lift extension pipe

1шт.

6

491516R1

BRACKET, extension

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 C-Z hex-hd cap

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 C-Z hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

2шт.
