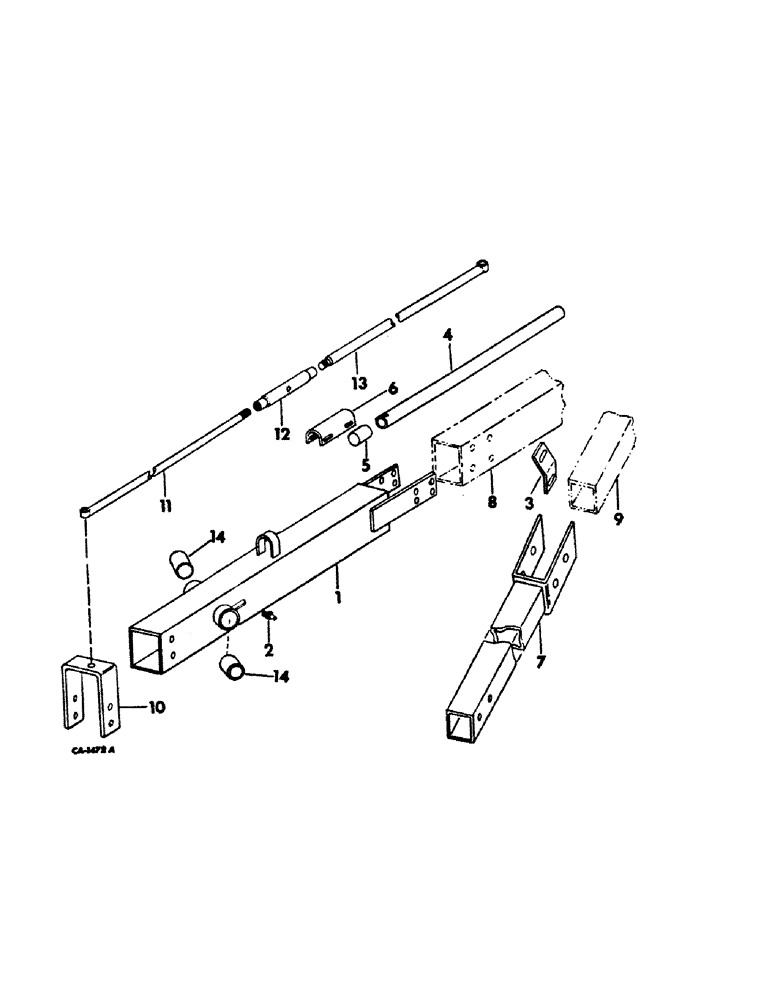

Запчасти Case IH 30 (C-09) - RAKING WHEEL FRONT EXTENSION, EIGHTH WHEEL, FOR SEVEN WHEEL RAKES ONLY

1

492544R91

EXTENSION W/BUSHINGS, front

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

SCREW, 1/2-13 x 4-1/4 C-Z hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

4шт.

2

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8-27 special short str lub

1шт.

3

491511R2

CLIP

1шт.

18516R1

BOLT,3/8" x 3 3/4"

3/8-16 x 3-3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

1шт.

4

491515R1

PIPE, lift extension

1шт.

5

491518R1

PIN, lift extension pipe

1шт.

6

491516R1

BRACKET, extension

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 C-Z hex-hd cap

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 C-Z hex-hd cap

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

2шт.

7

493720R2

EXTENSION ASSY, tongue

1шт.

271760

SHAFT,Hex, 5/8" - 18 x 5", Gr 5

SCREW, 5/8-18 x 5 C-Z hex-hd cap

2шт.

425-110

5/8-18 C-Z hex.

4шт.

8

FRAME ASSY, main, refer to main frame and lift listing

1шт.

9

TONGUE ASSY, refer to tongue, hitch plate yoke and related parts listing

1шт.

10

546670R1

BRACKET, truss rod

1шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

1/2-13 x 5-1/4 znd hex-hd cap

2шт.

11

546671R1

ROD, truss

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

1шт.

12

516347R1

TURNBUCKLE

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

13

546673R1

ROD, truss

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap

1шт.

27927DA

WASHER

17/32 x 7/8 x 8 ga C-Z

1шт.

14

491469R1

BUSHING

2шт.
