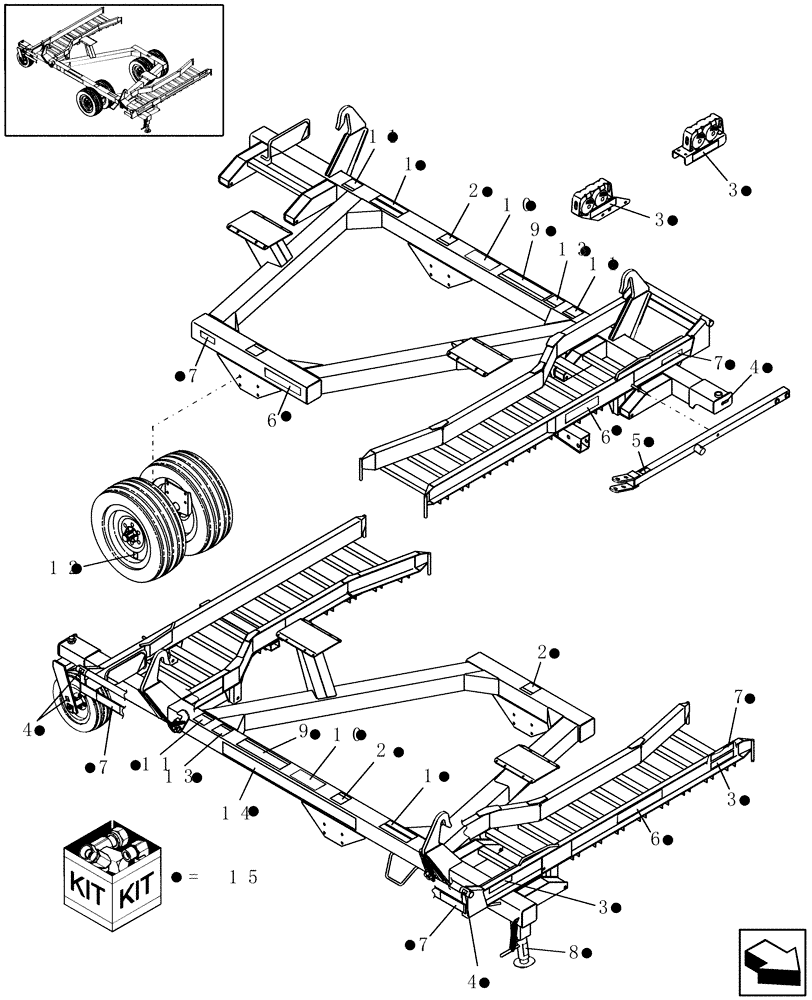

Запчасти Case IH HTX101 (20.08[1]) - DECALS, P.I.N. HBJ0000110 & AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case IH HTX101 - (20.08[1]) - DECALS, P.I.N. HBJ0000110 & AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/caseih/597680.png)
2
7
9
6
5
12
2
9
1
1
2
6
7
7
11
11
3
7
13
4
3
7
3
4
14
13
10
3
8
4
10
6
11
№
Артикул
Название
Примечание
Количество
1
86516507
ANTI-SKID STRIP
2" x 36" (Cut To Fit)
2шт.
2
86619906
DECAL
2шт.
3
86547781
REFLECTOR,RED
Red Retroreflective
4шт.
4
165109
DECAL
Lube Fitting
6шт.
5
86619905
DECAL
1шт.
6
86624776
DECAL
Logo, CASE IH
3шт.
7
86547782
REFLECTOR,YELLOW
Yellow Retro Reflective
5шт.
8
86625182
WARNING DECAL
1шт.
9
86620305
DECAL
INSTRUCTIONS
1шт.
10
86631604
DECAL
2шт.
11
86618662
DECAL
DO NOT LATCH RAMPS
2шт.
12
183155
DECAL
TORQUE SPECS
4шт.
12
602232
DECAL
Torque - French
4шт.
12
9804237
DECAL
Torque - Spanish
4шт.
13
86626532
DECAL
DO NOT STEER
1шт.
14
87026970
DECAL
Decal, HTX101
1шт.
15
86630767
DECAL
Set
1шт.
Выбрано товаров: 17
