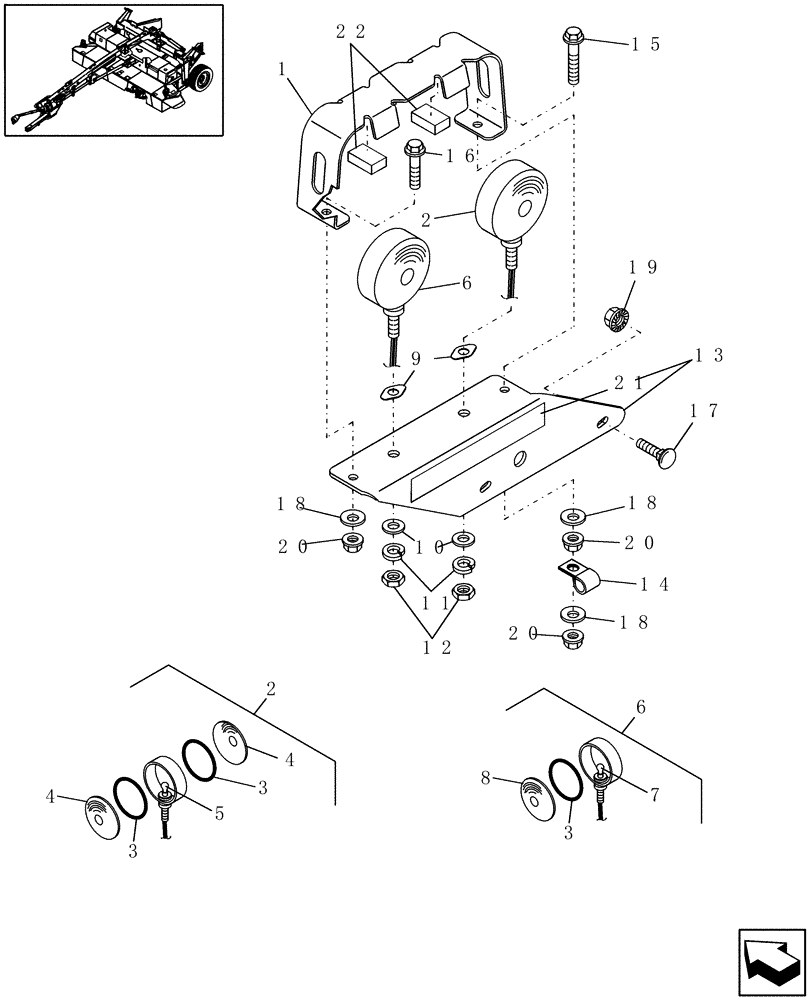

Запчасти Case IH HTX101 (20.06) - ELECTRICAL, LH (55) - ELECTRICAL SYSTEMS

1

86630736

SUPPORT ASSY.

Includes: Ref. 22

1шт.

2

86624454

LAMP

Double Face, Includes: Ref 3, 4, 5, 9 - 12

2шт.

3

86627435

O-RING,3.484" ID x 0.139" Width

3шт.

4

86622240

LENS

Amber

2шт.

5

A41264

BULB,#1156, 12V

1шт.

6

86621619

WARNING LIGHT

Red, Includes: Ref 7 - 12

1шт.

7

T34857

BULB,C6, #1157, 12.8V

1шт.

8

86622241

LENS

Red

2шт.

9

853709

GASKET,1.65mm Thk

2шт.

10

495-21056

WASHER,1/2"

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

12

425-118

NUT,1/2"-20, G5

2шт.

13

86630902

BRACKET

1шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

15

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

16

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

1шт.

17

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

3шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

20

425-286

FLANGE NUT,Flg, 3/8"-16, G5

3шт.

21

86547781

REFLECTOR,RED

Red Retroreflective

1шт.

22

86598388

PAD

2шт.
