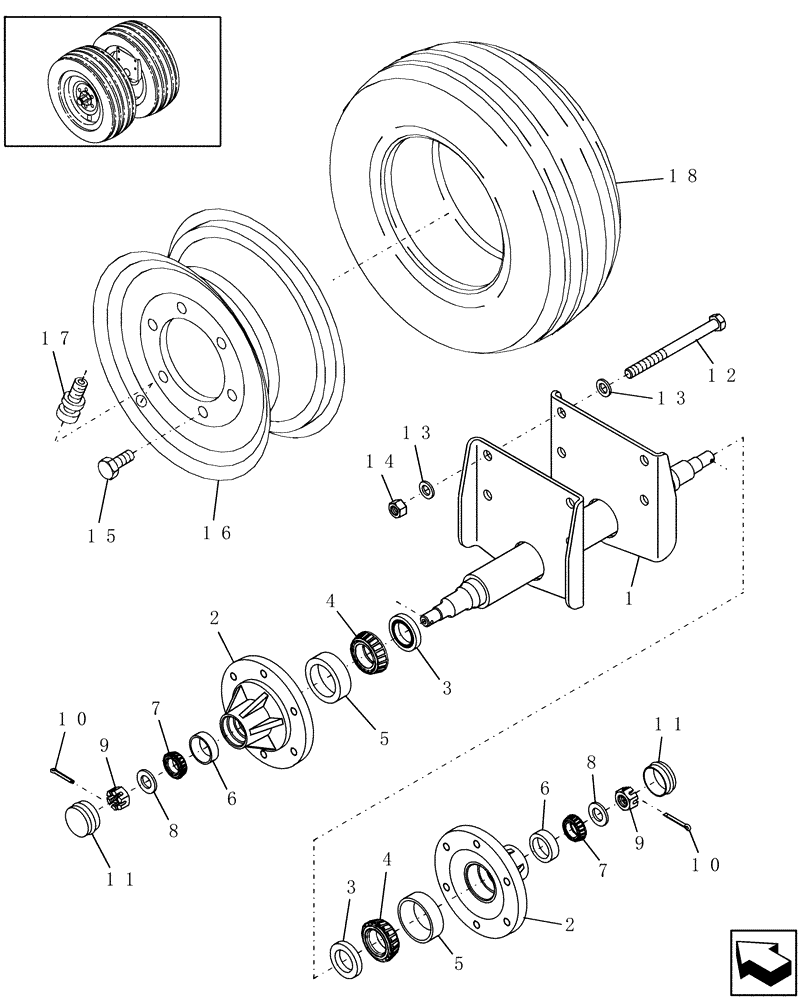

Запчасти Case IH HTX101 (20.11) - WHEELS, MAIN & SPINDLE (44) - WHEELS

1

86631669

SPINDLE,625.4mm L

1шт.

2

86620408

HUB

2шт.

3

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

5

651817R1

BEARING CUP

2шт.

6

574810

BEARING CUP,45.26mm OD x 12.06mm W

2шт.

7

536056R91

ROLLER BEARING,0.8656" ID x 0.655"

2шт.

8

80011438

WASHER,19.45mm ID x 34.9mm OD x 2.59mm Thk

3/4" x .135" Thk.

2шт.

9

425-1312

SLOTTED NUT,3/4"-16, G5

2шт.

10

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

11

249130

HUB CAP

2шт.

12

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

4шт.

13

781316

WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk

8шт.

14

425-1010

NUT,5/8"-11, G5

4шт.

15

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

12шт.

16

86616430

WHEEL

2шт.

17

86626246

VALVE STEM

1шт.

18

PL

PROCURE LOCALLY

Tire, 9.5L-14, 8 Ply

1шт.
