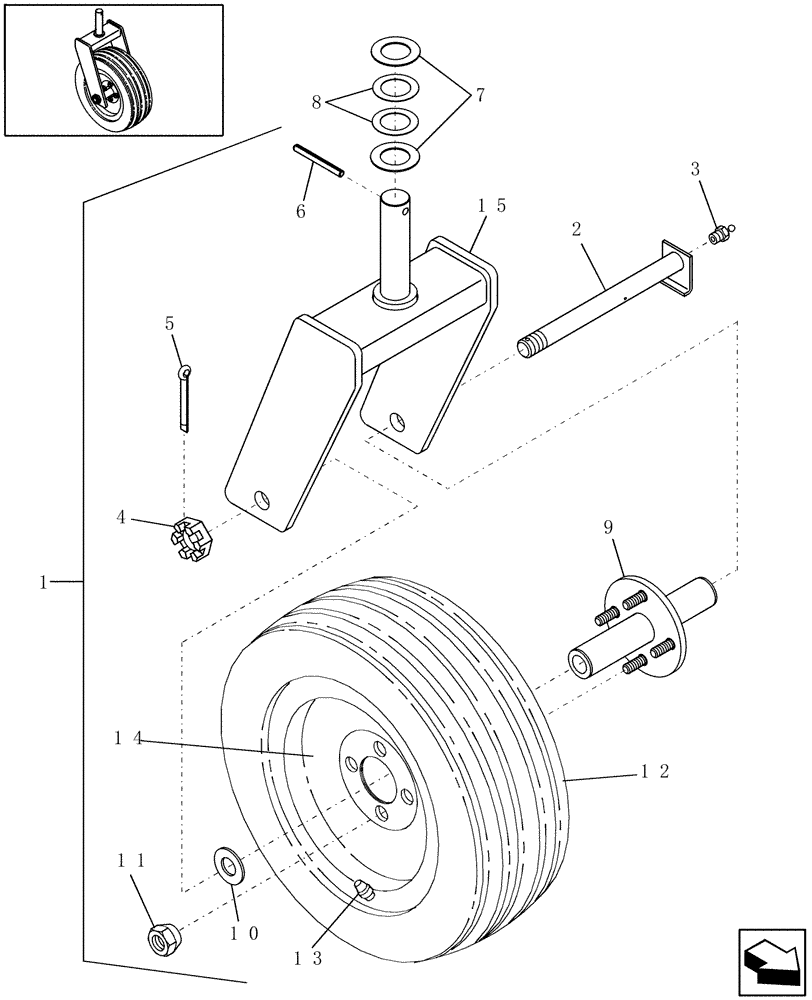

Запчасти Case IH HTX101 (20.11[1]) - WHEELS, CASTER (44) - WHEELS

1

0C

ORDER COMPONENTS

1шт.

2

86534168

FRONT AXLE

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

603373

JAM NUT,Slotted, 1" - 14, Gr 2

Jam, G2, 1"-14

1шт.

5

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

6

87577

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

1шт.

7

233295

WASHER

2шт.

8

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1шт.

9

86630673

FLANGE ASSY

Hub

1шт.

10

495-11106

WASHER,1", SAE

1шт.

11

29790

NUT,1/2" - 20

Hub Bolt, 1/2"-20

4шт.

12

PL

PROCURE LOCALLY

Tire

1шт.

13

86610419

TIRE TUBE

Inner

1шт.

14

86630677

RIM

WHEEL

1шт.

15

86630674

FORK

Caster

1шт.
