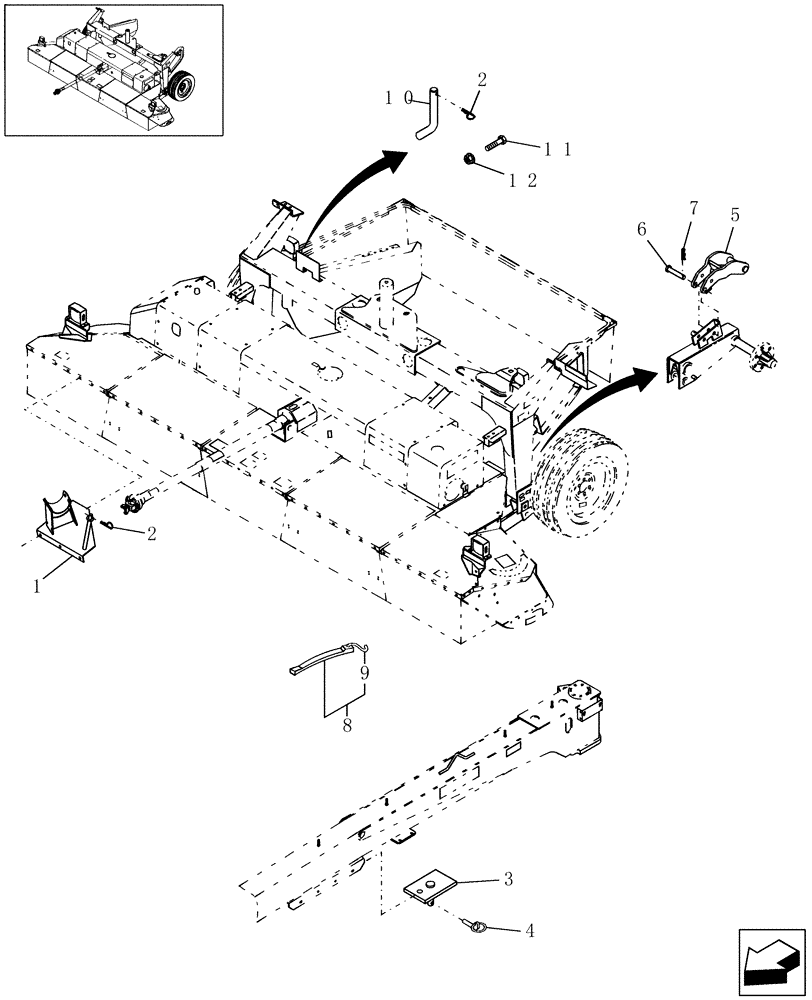

Запчасти Case IH HTX101 (20.12[5]) - CRADLE, SLIDE & LINK (39) - FRAMES AND BALLASTING

1

86631399

CRADLE

1шт.

Mounts with existing hardware from base unit

1шт.

Prior to PIN HBJ0000110

1шт.

1

86978990

CRADLE

1шт.

After PIN HBJ0000110

1шт.

Mounts with existing hardware from base unit

1шт.

2

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

5/32" x 2-3/4"

1шт.

3

86588453

SLIDE

Plate

1шт.

4

132757

LINCH PIN,11.11mm OD x 44.45mm L

1шт.

5

86631398

LINK ASSY.

Wheel Arm Latch

2шт.

6

86610797

PIN

2шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

8

86518682

FASTENER

Bungee

1шт.

9

115680

HOOK

"S"

1шт.
