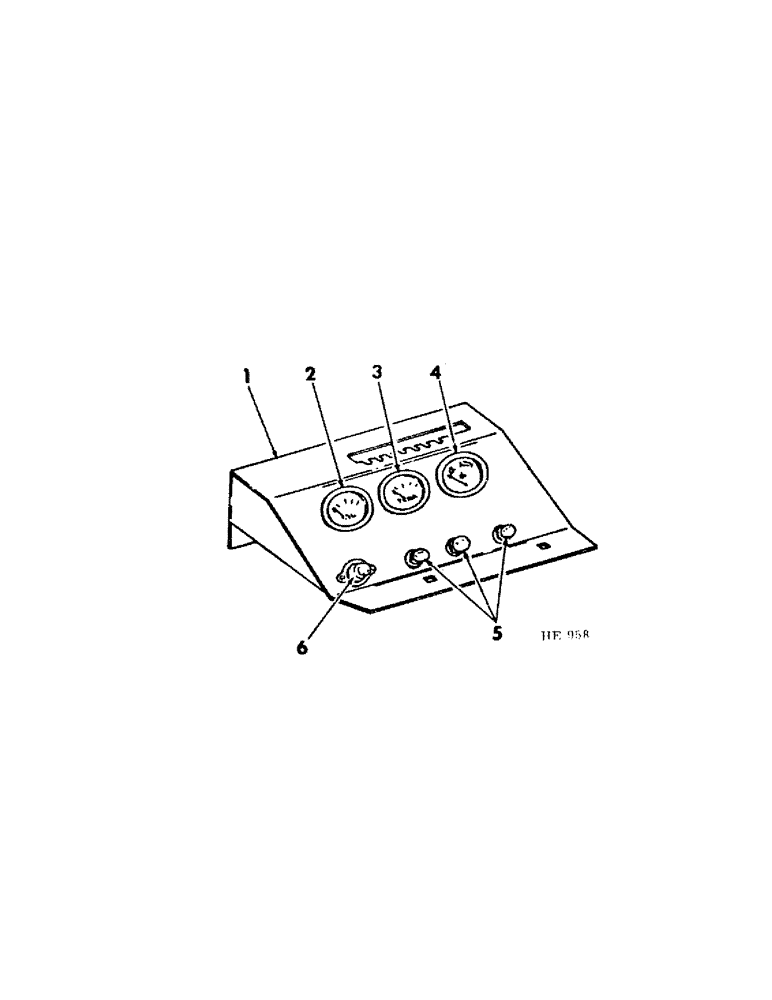

Запчасти Case IH 225 (M-4) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, INSTRUMENT PANEL (10) - OPERATORS PLATFORM

1

599928R1

PANEL, instrument

1шт.

8598801R1

5/16 X 1/" CRG BOLT

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

362039R94

GAUGE

oil pressure (Opt to use 393488R91, gauge)

1шт.

2

393488R91

SWITCH

GAUGE, oil pressure (Opt to use 362039R94)

1шт.

3

259347R91

GAUGE

heat indicator (Includes 1 - 51510D, bushing)

1шт.

51510D

BUSHING

INDICATOR REDUCING BUSHING

1шт.

4

269467R92

INDICATOR

GAUGE, ammeter

1шт.

5

62801DC

SWITCH

3шт.

21053R1

WASHER

19/32 X 1-1/4 X 11 GA WASHER

3шт.

6

366317R93

SWITCH

BUTTON, starter

1шт.

6

366317R93GV

CONTROL

Value, Control Switch

1шт.

132903

ADAPTER

#10 7/16" RD-HD SLT SCREW

2шт.

120611

NUT,#10 - 32

#10 NUT

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
