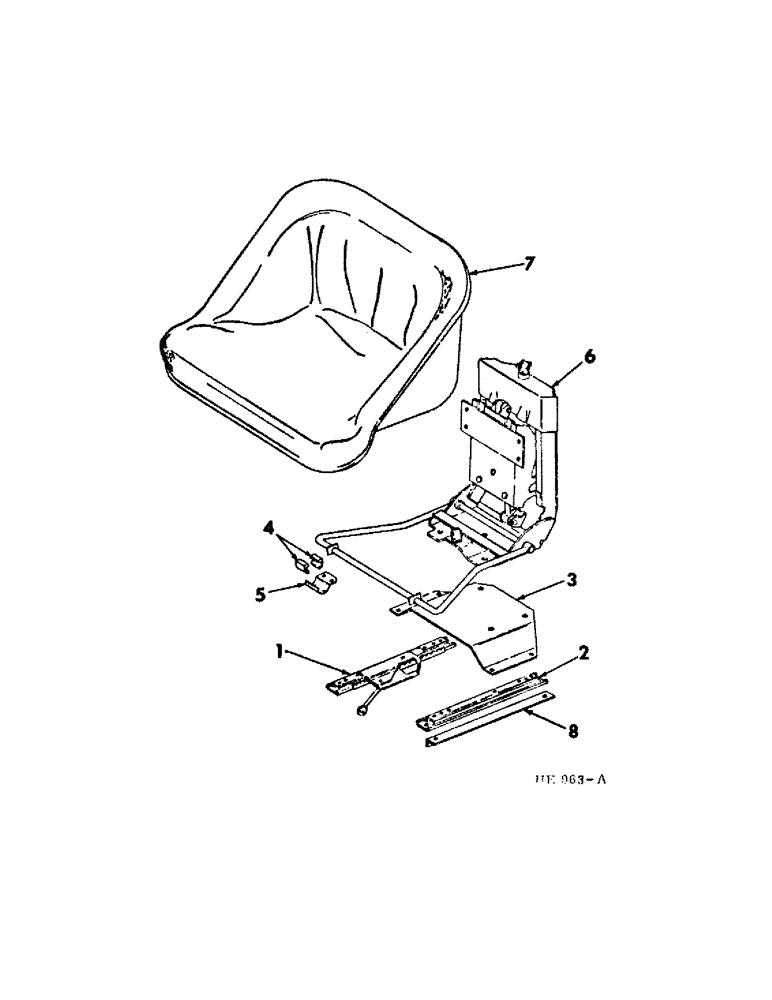

Запчасти Case IH 225 (M-4[A]) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, OPERATORS SEAT, BOSTRUM, 1970 AND SINCE (10) - OPERATORS PLATFORM

1

825199C91

SLIDE

seat adj RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

825198C1

RAIL

SLIDE, seat LH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

825200C1

SUPPORT, seat

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

825203C1

BUSHING

BEARING, seat retainer half

4шт.

5

825204C1

RETAINER

CLIP, bearing retainer

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

825201C91

SUSPENSION ASSY, seat (For service parts refer to "seat suspension")

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

825202C91

SEAT, operator's

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

825711C1

ANGLE, seat support (Serial no. 805 and since)

2шт.
