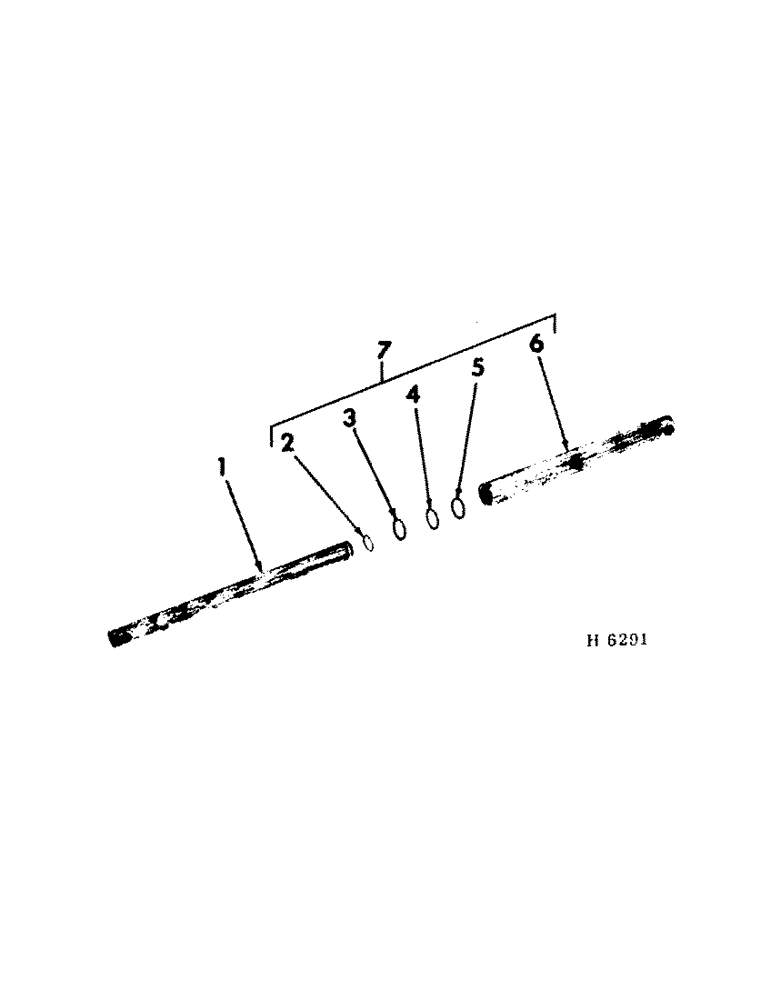

Запчасти Case IH 225 (F-8[A]) - HYDRAULIC SYSTEM, PLATFORM LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

599221R91

CYLINDER

ASSY, platform lift hyd (Includes all parts listed below)

2шт.

1

599988R1

ROD

hyd cyl piston

1шт.

2

NSS

NOT SOLD SEPARAT

RING, rod lock (Order 1 - 823375C1, kit)

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL, piston rod wiper (Order 1 - 823375C1, kit)

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER, back-up (Order 1 - 823375C1, kit)

1шт.

5

NSS

NOT SOLD SEPARAT

"O" RING, piston rod (Order 1 - 823375C1, kit)

1шт.

6

599987R1

BODY, cylinder

1шт.

7

823375C1

SEAL KIT

KIT, hyd cylinder seal repair, Composed of

1шт.

NSS

NOT SOLD SEPARAT

"O" RING

1шт.

NSS

NOT SOLD SEPARAT

RING

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

WASHER

1шт.
