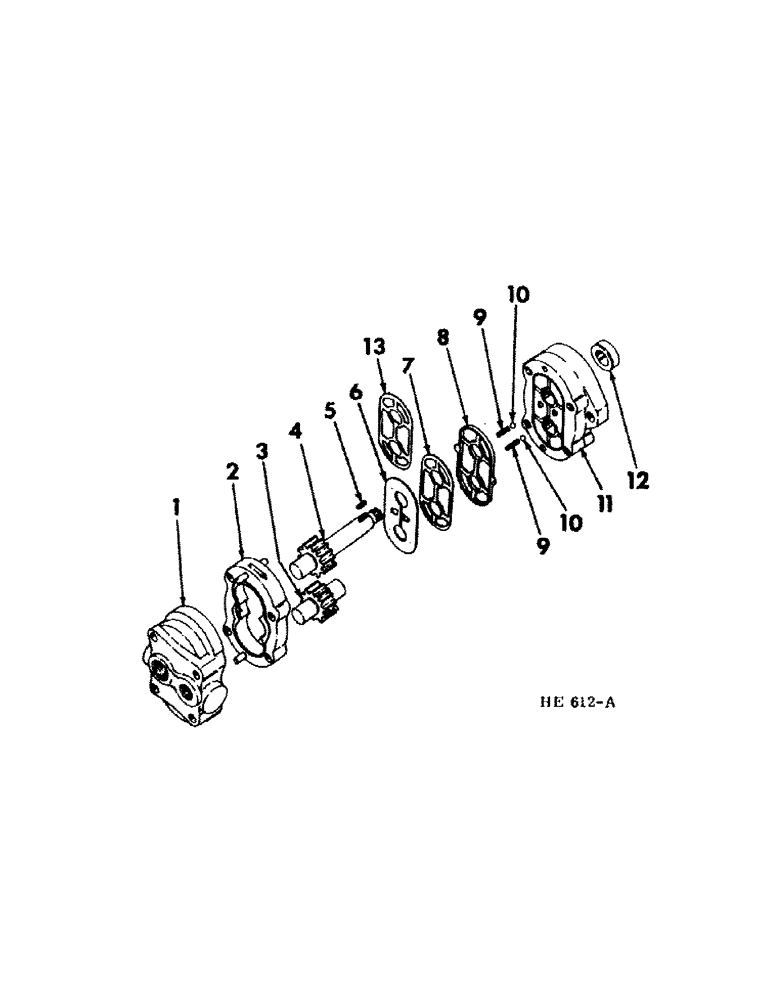

Запчасти Case IH 225 (F-7) - HYDRAULICS SYSTEM, HYDRAULIC PUMP, CESSNA (07) - HYDRAULIC SYSTEM

591980R91

PUMP

ASSY, hyd (Opt w/591979R91, pump) (Composed of all parts listed below, unless otherwise noted)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

1

614747R91

PLATE, hyd pump back

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 X 2-1/4" BOLT

4шт.

2

617370R91

BODY W/PIN, hyd pump

1шт.

3

592249R91

GEAR, idler

1шт.

4

592248R91

GEAR, drive

1шт.

5

607171R1

KEY

hyd pump

1шт.

6

COVER, diaphragm (For service order 1 - 614750R92, package)

1шт.

7

GASKET, back-up (For service order 1 - 614750R92, package)

1шт.

8

SEAL, diaphragm (For service order 1 - 614750R92, package)

1шт.

9

371523R1

SPRING

ball check

2шт.

10

16007R1

BALL

steel

2шт.

11

614746R91

PLATE, hyd pump front

1шт.

12

596548R91

SEAL

shaft

1шт.

13

GASKET, protector (For service order 1 - 614750R92, package)

1шт.

614750R92

SEAL KIT

PACKAGE, hyd pump seal repair kit, Composed of:

1шт.

16007R1

BALL

2шт.

COVER

1шт.

GASKET

1шт.

SEAL

1шт.

596548R91

SEAL

1шт.

371523R1

SPRING

2шт.

GASKET

1шт.

591979R91

PUMP ASSY, hyd (Opt w/591980R91, pump) (Includes all parts listed, unless otherwise noted)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
