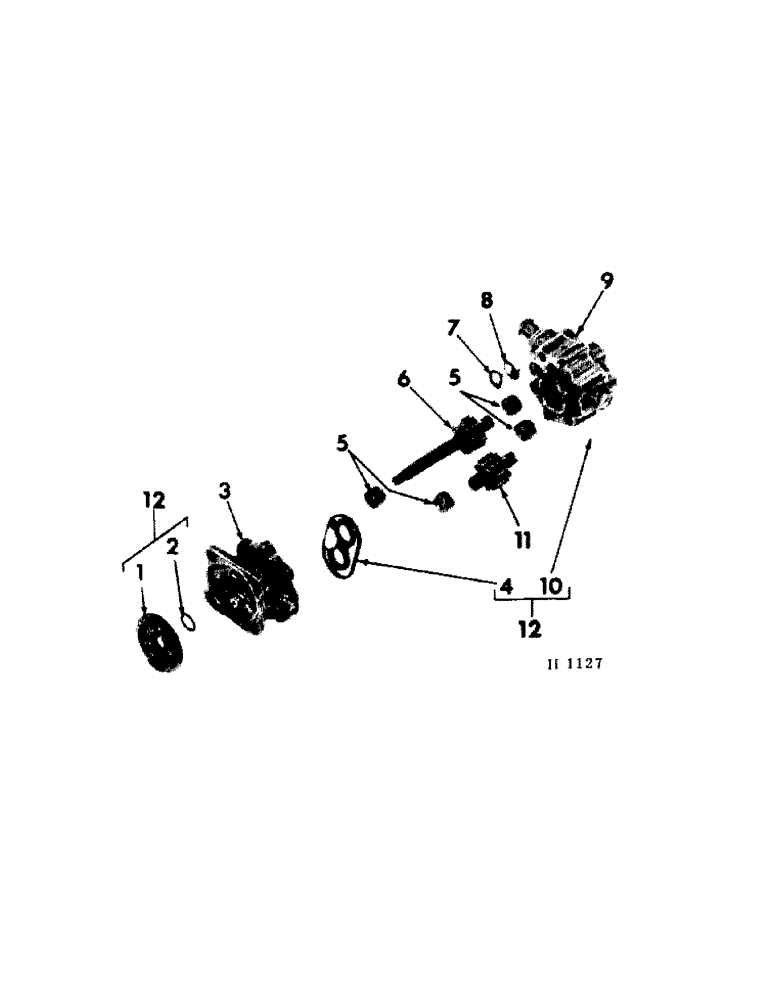

Запчасти Case IH 225 (F-7[A]) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, WEBSTER (07) - HYDRAULIC SYSTEM

591979R91

PUMP ASSEMBLY, Hyd, Opt W/ 591980R91, pump, Includes all parts listed unless otherwise noted

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

1

PLATE, seal (Order 1 - 592430R91, kit)

1шт.

167024

NO. 8-NF X 1/4" PAN-HD CROSS-RECESS TYPE "D" C-Z SELF-TAPPING SCREW

3шт.

2

"O" RING (Order 1 - 592430R91, kit)

1шт.

3

592421R91

BODY, pump (Includes 592442R91, BRGS)

1шт.

592428R1

BODY DOWEL PIN

2шт.

4

SEAL (Order 1 - 592430R91, kit)

1шт.

5

592422R91

BEARING, body & cover needle

4шт.

6

592424R91

GEAR, pump drive

1шт.

592426R1

1/8 X 1/8 X 3/8" KEY

1шт.

7

592429R1

INSERT, bridging

1шт.

8

592427R1

BLOCK, pump anti-extrusion

1шт.

9

592423R91

COVER, pump (Includes 592422R91, bearings)

1шт.

138225

BEARING

5/16 X 1-3/4" SOC-HD CAP SCREW

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

GASKET (Order 1 - 592430R91, kit)

1шт.

11

592425R91

GEAR, pump idler

1шт.

12

592430R91

KIT, pump seal repair, Composed of:

1шт.

GASKET

1шт.

PLATE

1шт.

"O" RING

1шт.

SEAL

1шт.
