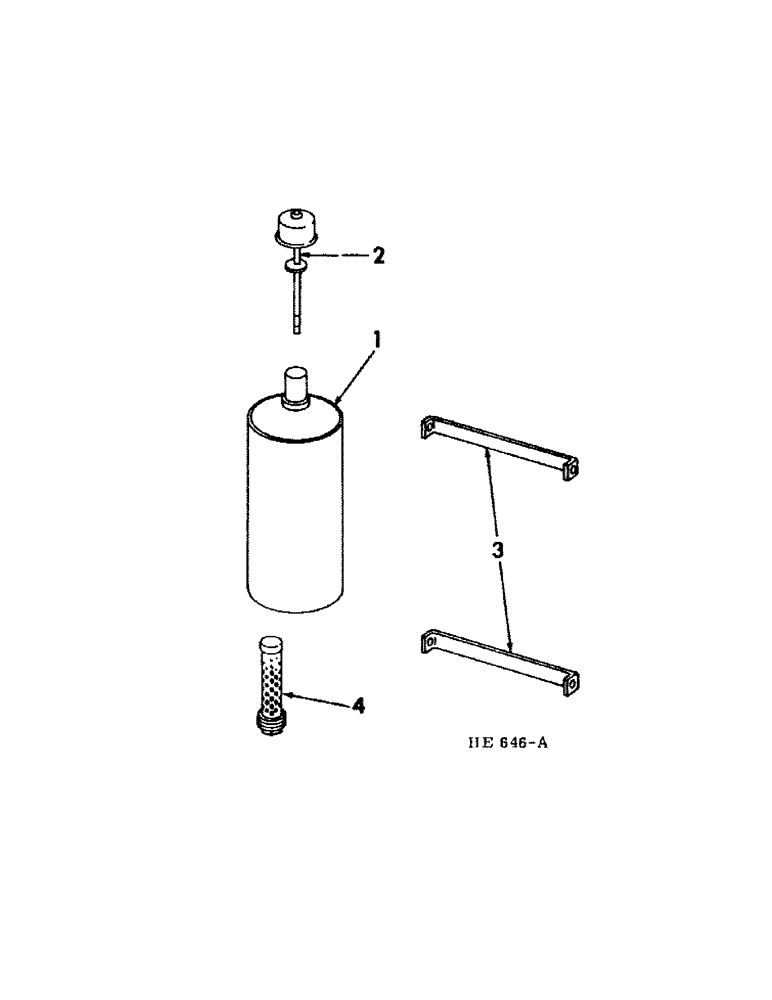

Запчасти Case IH 225 (F-6) - HYDRAULICS SYSTEM, HYDRAULIC OIL RESERVOIR (07) - HYDRAULIC SYSTEM

1

597436R91

RESERVOIR, w/cap (Includes 1 - 596357R1, dipstick)

1шт.

2

596357R1

CAP

DIPSTICK & CAP, breather

1шт.

3

594497R1

STRAP, oil reservoir mounting

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 X 5/8" BOLT

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

619037R91

STRAINER ASSY.

STRAINER, oil reservoir

1шт.
